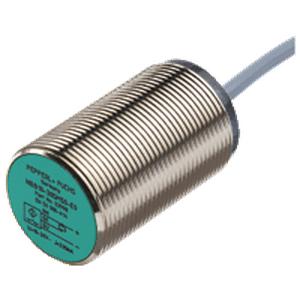

Pepperl and Fuchs Inductive Proximity Switch NBB15-30GM50-WO
The Technical Specifications for NBB15-30GM50-WO are:
- Switching Function: Normally Open (NO)
- Output Configuration: Two-Wire
- Rated Sensing Distance: 15 mm
- Installation Type: Quasi Flush
- Output Polarity: AC
- Sensing Distance: 15mm
- Operating Voltage: 20 to 253 VDC/VAC
- Switching Frequency: 0 to 20 Hz
- Housing Material: Brass, Nickel-Plated
NBB15-30GM50-WO Technical Specifications:
| Switching function | Normally open (NO) | |
| Output type | Two-wire | |
| Rated operating distance | 15 mm | |
| Installation | quasi flush | |
| Output polarity | AC | |
| Assured operating distance | 0 … 12.15 mm | |
| Actual operating distance | 13.5 … 16.5 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.28 | |
| Reduction factor r304 | 0.81 | |
| Output type | 2-wire | |
| Operating voltage | 20 … 253 V | |
| Switching frequency | 0 … 20 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Voltage drop | < 5 V (IL > 50 mA); < 8 V (IL < 50 mA) | |
| Momentary current (20 ms, 0.1 Hz) |
0 … 1600 mA | |
| Operating current | 5 … 200 mA AC/DC | |
| Off-state current | 0 … 1.7 m | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Standard conformity-Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Connection type | cable PVC, 2 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| Note | 1) In the temperature range below 0 °C, permissible operating voltage Ub 80…253 V Safety fuse ≤ 0.3 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. |
|
