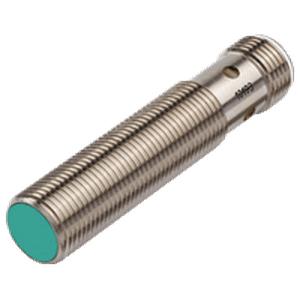

Pepperl Fuchs Inductive Sensor
NBB2-12GM40-Z0-V1
Challaturu Automation offers the ideal solution to meet your requirements for proximity switches. The Pepperl Fuchs NBB2-12GM40-Z0-V1 is a flush-type switch with a sensing distance of 2mma normally open, dc 2-wire.
NBB2-12GM40-Z0-V1 Technical Specifications:
| Switching function | Normally open (NO) |
| Rated operating distance | 2 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 … 1.62 mm |
| Output type | 2-wire |
| Operating voltage | 5 … 60 V |
| Switching frequency | 0 … 1000 Hz |
| Operating current | 2 … 100 mA |
| Switching state indicator | Multihole-LED, yellow |
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
Product Documentation: NBB2-12GM40-Z0-V1
Related Products: NBB2-12GM40-Z0-V1
NBN8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB0 8-4M25-E0
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB1-5-8GM40-Z0
Inductive Proximity Sensor, Sensor diameter: Not specified, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 1200 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 60 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB15-30GM30-E2-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB0 8-5GM25-E2
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB10-30GM50-WS
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 10 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 20 Hz, Type of voltage: AC, Connection type: Cable, Operating voltage: 20 … 253 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB0 6-3M22-E2
Inductive Proximity Sensor, Sensor diameter: 0.6mm, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB1-5-5GM25-E2
Inductive Proximity Sensor, Rated operating distance: 1.5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 3-wire, Construction type: Not specified, Sensor length: 24mm x 24mm x 1mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-36V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB1-4GM22-E2
Inductive Proximity Sensor, Rated operating distance: 1 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 700 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB15-30GM50-E2-M
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 600 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP68/IP69K.
NBB0 6-3M22-E2
Inductive Proximity Sensor, Sensor diameter: 0.6mm, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
Challature Automation offers capacitive & Inductive sensors at comprehensive prices. Pepperl Fuchs NBB2-12GM40-Z0-V1 is an inductive proximity switch designed for use in various industrial applications. The sensor has a Normally Open (NO) switching function and a DC output polarity, providing reliable and accurate detection.
The sensor has a rated operating distance of 2 mm and is installed in a flush manner. It has an assured operating distance of 0 to 1.62 mm, ensuring precise and dependable detection. The output type of the sensor is 2-wire, and it operates at a voltage range of 5 to 60 V, with a switching frequency of 0 to 1000 Hz. The sensor has an operating current of 2 to 100 mA, providing a high level of performance.
It has a multi-hole LED in yellow that indicates the switching state of the sensor. It has a wide operating temperature range of -25 to 70°C (-13 to 158°F), making it suitable for use in harsh environments. The sensor is connected via a 4-pin connector plug M12 x 1 and is housed in a durable brass material with a nickel-plated finish. The sensing face of the sensor is made of PBT material and a degree of protection of IP67.
