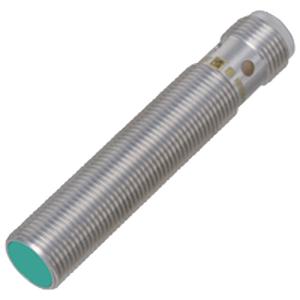

Pepperl Fuchs NBB2-12GM50-E0-V1
Challaturu offers the ideal solution to meet your requirements for a P&F inductive proximity switch. The Pepperl Fuchs NBB2-12GM50-E0-V1 is a flush, Connector type with a switching function of normally open, NPN output, and a sensing distance of 2mm.
NBB2-12GM50-E0-V1Technical Specifications:
| Switching function | Normally open (NO) |
| Output type | NPN |
| Rated operating distance | 2 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 … 1.62 mm |
| Output type | 3-wire |
| Operating voltage | 5 … 36 V |
| Switching frequency | 0 … 3500 Hz |
| Operating current | 0 … 200 mA |
| Switching state indicator | LED, yellow |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) |
| Connection type | Connector Plug |
| Housing material | brass, white bronze coated |
| Sensing face | PBT, green |
| Degree of protection | IP68 |
| Connection threading | M12 x 1 |
| Number of pins | 3 |
Product Documentation: NBB2-12GM50-E0-V1
Related Products: NBB2-12GM50-E0-V1
NBB5-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Rated operating distance: 5 mm, Type of voltage: DC, Connection type: Connector plug, Operating voltage: DC 5-36V, Housing material: Brass, white bronze coated, Sensing face: PBT, green, Degree of protection: IP68.
NBN8-12GM50-E2
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Sensor length: 50mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-36V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB5-18GM40-Z0
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 500 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB0 6-4GM22-E2
Inductive Proximity Sensor, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB0 8-5GM25-E2
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB1-3M22-E2
Inductive Proximity Sensor, Rated operating distance: 1 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 700 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB1-5-8GM40-Z0
Inductive Proximity Sensor, Sensor diameter: Not specified, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 1200 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 60 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB10-30GM40-Z0-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 10 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 150 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1 , 4-pin, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plated, Degree of protection: IP67.
NBB10-30GM50-E2-C-V1
Inductive Proximity Sensor Rated operating distance: 10 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 10 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, Operating voltage: 10 … 30 V DC, Housing material: Brass with PTFE coating, Degree of protection: IP67.
NBB10-30GM60-A2-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 10 mm, Switching function: Complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 1100 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-E0
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-E2-M
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 600 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP68/IP69K.
NBB15-30GM50-US
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 30 Hz, Output type: 2-wire, Type of voltage: AC/DC, Connection type: Cable, Operating voltage: 20 … 250 V AC/20 … 300 V DC, Housing material: Brass, nickel-plated, Degree of protection: IP67.
The Pepperl Fuchs NBB2-12GM50-E0-V1 is an inductive proximity sensor designed for use in a range of industrial applications. This sensor features a normally open (NO) switching function and an NPN output type, with a rated operating distance of 2 mm. It is designed for flush installation and features a DC output polarity, with an assured operating distance ranging from 0 to 1.62 mm.
This proximity switch is a 3-wire device that can operate on voltages ranging from 5 to 36 V, with a switching frequency of 0 to 3500 Hz and an operating current of 0 to 200 mA. It also features a yellow LED switching state indicator, making it easy to monitor its performance. With an ambient temperature range of -40 to 85 °C (-40 to 185 °F), this sensor can withstand even the most extreme conditions. The NBB2-8GM30 E0 features a connector plug for easy installation and comes with an M12 x 1 connection threading, with 3 pins.
The housing material of this sensor is made of brass with a white bronze coating, and the sensing face is made of green PBT material. This provides excellent durability and resistance to wear and tear, making it ideal for use in harsh industrial environments. The degree of protection for this sensor is IP68, which means it is highly resistant to water and dust ingress.
Overall, the Pepperl Fuchs NBB2-12GM50-E0-V1 proximity sensor is a highly reliable and durable device that can be used in a range of industrial applications. Whether you need an inductive or capacitive sensor, this P&F is an excellent choice for its accuracy, durability, and ease of use.
