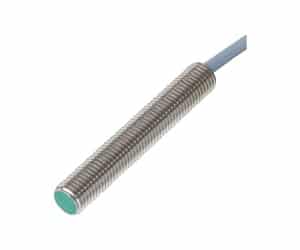

P&F Inductive Proximity Sensors NBB2-8GM50-E2
The technical specifications for the Pepperl Fuchs NBB2-8GM50-E2 are:
- Sensor diameter: M8
- Sensing distance: 2mm
- Switching function: Normally Open (NO)
- Output type: PNP and 3-wire
- Installation: Flush
- Protection level: IP67
- Connection type: Cable (PVC), 2m in length
- Switching frequency: 0 to 6000 Hz
₹1,050.00
In stock
Technical Specifications of NBB2-8GM50-E2:
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm | |
| Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 8 mm x 8 mm x 1 mm |
|
| Reduction factor rAl | 0.4 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.75 | |
| Reduction factor rBrass | 0.5 | |
| Output type | 3-wire | |
| Operating voltage | 5 … 30 V | |
| Switching frequency | 0 … 6000 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 1.5 V | |
| Operating current | 0 … 100 mA | |
| Off-state current | 0 … 0.2 mA | |
| No-load supply current | ≤ 10 mA | |
| Time delay before availability | ≤ 100 ms | |
| Switching state indicator | LED, yellow | |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.14 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | LCP | |
| Degree of protection | IP67 | |
Product Documentation: NBB2-8GM50-E2
Here is the main technical specification of Pepperl Fuchs Inductive Proximity Sensor NBB2-8GM50-E2: M8 Dia, Flush, PNP, 2mm Sensing, Normally Open, Cable type.
If you want to know all range Pepperl Fuchs proximity models you can check.
