Home / Products / Proximity Sensor / Pepperl Fuchs / NBB20-L2-A2-V1
Pepperl Fuchs Inductive Proximity Sensors
NBB20-L2-A2-V1
NBB20-L2-A2-V1 Technical Specifications:
| Switching function | complementary | |
| Output type | PNP | |
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 16.2 mm | |
| Actual operating distance | 18 … 22 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.31 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.41 | |
| Output type | 4-wire | |
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 440 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | ≤ 20 mA | |
| Time delay before availability | 80 ms | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| MTTFd | 1289 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Standard conformity-Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 |
|
| Protection class | II | |
| EAC conformity | TR CU 020/2011 | |
| Rated insulation voltage | 253 V | |
| Rated impulse withstand voltage | 4000 V | |
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Degree of protection | IP69K | |
| Cable diameter | 3.3 mm ± 0.15 mm | |
| Cable-Mass | 130 g | |
Product Documentation: NBB20-L2-A2-V1
Related Products: NBB20-L2-A2-V1
NBB2-8GM40-E2-V3
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M8 x 1 , 3-pin, Operating voltage: 5 … 30 V, Housing material: Brass, nickel-plated, Degree of protection: IP67.
NBB8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN4-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 2650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-US-V12
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 30 Hz, Output type: 3-wire, Type of voltage: AC/DC, Connection type: Connector plug 1/2″-20 UN, Operating voltage: 20 … 250 V AC/20 … 300 V DC, Housing material: Brass, nickel-plated, Sensing face: PBT, Degree of protection: IP67.
NBB15-30GM50-WO
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally closed (NC), Output type: Two-wire, Installation: Quasi flush, Switching frequency: 0 … 20 Hz, Output type: 2-wire, Type of voltage: AC, Connection type: Cable, Operating voltage: 20 … 253 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB15-30GM50-WS
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Quasi flush, Switching frequency: 0 … 20 Hz, Output type: 2-wire, Type of voltage: AC, Connection type: Cable, Operating voltage: 20 … 253 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB2-12GM30-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB1 5-F79-E2
Inductive Proximity Sensor, Sensor diameter: Not specified, Rated operating distance: 1.5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1200 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Flexible leads, Operating voltage: 5 … 30 V DC, Housing material: PA, Degree of protection: IP67.
NBB2-12GM40-E2
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-12GM40-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-12GM40-Z0
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 1000 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel plating, Degree of protection: IP67.
NBB2-12GM40-Z0-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 1000 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1 , 4-pin, Operating voltage: 5 … 60 V, Housing material: Brass, nickel-plated, Degree of protection: IP67.
NBB2-12GM50-A2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

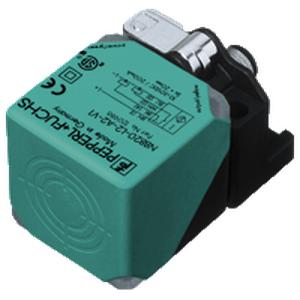

Pepperl+Fuchs NBB20-L2-A2-V1 is an inductive proximity sensor with a sensing range of 20 mm, which uses a PNP complementary output type. It can detect ferrous and non-ferrous metals in harsh environments due to its IP69K degree of protection.
The sensor is compatible with a 10-30 VDC power supply and comes with a 4-pin M12 connector plug. It has a rated insulation voltage of 253 V and a rated impulse withstand voltage of 4000 V. You can purchase the Pepperl+Fuchs NBB20-L2-A2-V1 from IndMALL Automation.
You can check the P&F 20mm series with the Connector type.
