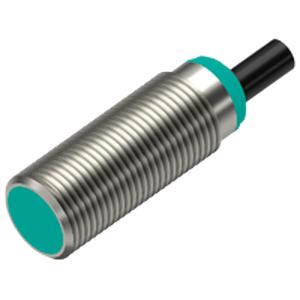

NBB4-12GM30-E0-V1
NBB4-12GM30-E0-V1 Technical Specifications:
IndMALL Automation offers the ideal solution for your industrial needs if you require proximity switches with an M12 dia, 4mm sensing distance, NPN, NO, cable, and flush type the Pepperl Fuchs NBB4-12GM30-E0-V1 sensor.
| Sensor Head | M12 | |
| Switching function | Normally open (NO) | |
| Output type | NPN | |
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Output Polarity | DC | |
| Output Type | 3-wire | |
| Operating voltage | 5 … 36 V | |
| Switching frequency | 0 … 2550 Hz | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) | |
| Connection type | Connector plug | |
| Housing material | brass, white bronze coated | |
| Sensing face | PBT, Green | |
| Degree of protection | IP68 | |
| Connector Threading | M12 x 1 | |
| Number of pins | 3 | |
Product Documentation: NBB4-12GM30-E0-V1
Related Products: NBB4-12GM30-E0-V1
NBB2-12GM50-E3-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally closed (NC), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-6-5M30-E2
Inductive Proximity Sensor, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 30 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB2-8GH20-E2-V3
Inductive Proximity Sensor, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M8 x 1, Operating voltage: 5 … 30 V, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67.
NBB2-8GH40-E2-V3
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M8 x 1, 3-pin, Operating voltage: 5 … 30 V, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67.
NBB2-8GM25-E2-V3
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M8 x 1 , 3-pin, Operating voltage: 5 … 30 V, Housing material: Brass, nickel-plated, Degree of protection: IP67.
The Pepperl Fuchs NBB4-12GM30-E0-V1 is an inductive proximity sensor that is commonly used in industrial applications. This sensor has an M12 sensor head and features a normally open (NO) switching function with an NPN output type. The rated operating distance for this sensor is 4 mm, making it suitable for a wide range of applications. The sensor is designed for flush installation and has a DC output polarity.
The proximity sensor is a 3-wire device that can operate on voltages ranging from 5 to 36 V, with a switching frequency of 0 to 2550 Hz. It also features a multi-hole LED switching state indicator, which is yellow in color. This feature allows users to monitor the performance of the sensor easily. This sensor has an ambient temperature range of -40 to 85 °C (-40 to 185 °F), which makes it suitable for use in extreme environments.
It comes with a connector plug for easy installation, and the connector threading is M12 x 1 with 3 pins. The housing material of this sensor is made of brass with a white bronze coating, providing excellent durability and resistance to wear and tear. The sensing face is made of green PBT material, which also adds to the sensor’s durability. The degree of protection for this sensor is IP68, meaning it is highly resistant to water and dust ingress.
Whether you need an inductive or capacitive sensor, the Pepperl Fuchs NBB4-12GM30-E0 V1 proximity sensor is an excellent choice due to its reliability, accuracy, and ease of use. With its multi-hole LED switching state indicator, users can quickly and easily monitor the sensor’s performance. This sensor is ideal for use in a wide range of industrial applications, making it a versatile and useful tool for any business.
You can check the P&F 4mm series with the Connector type.
