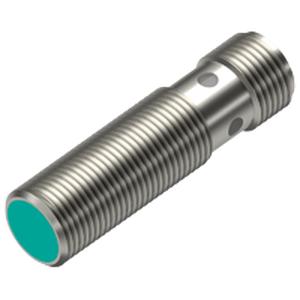

Pepperl + Fuchs Inductive Sensors NBB4-12GM30-E2-V1
NBB4-12GM30-E2-V1 Technical Specifications:
IndMALL Automation offers the ideal solution for your industrial needs if you require an Inductive proximity sensor with an M12 dia, 4mm sensing distance, PNP, NO, M12 Connector, and flush type the Pepperl Fuchs NBB4-12GM30-E2-V1 sensor.
| Sensor Head | M12 | |
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Output Type | 3-wire | |
| Operating voltage | 5 … 36 V | |
| Switching frequency | 0 … 2550 Hz | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) | |
| Connection type | Connector plug | |
| Housing material | brass, white bronze coated | |
| Sensing face | PBT, Green | |
| Degree of protection | IP68 | |
| Connector Threading | M12 x 1 | |
| Connector Number of pins | 3 | |
Product Documentation: NBB4-12GM30-E2-V1
Related Products: NBB4-12GM30-E2-V1
NBN8-12GM50-E2
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Sensor length: 50mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-36V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB5-18GM40-Z0
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 500 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB5-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
Pepperl Fuchs, a leading manufacturer of inductive and capacitive sensors, offers the NBB4-12GM30-E2-V1 proximity switch. It has a sensor head with an M12 size and a normally open (NO) switching function. The output type is PNP with a 3-wire configuration.
The rated operating distance of the NBB4-12GM30-E2-V1 is 4 mm, and it has a flush installation. The operating voltage range is 5 to 36 V, and it has a switching frequency of 0 to 2550 Hz. The switching state indicator is a multi-hole LED in yellow. The NBB4-12GM30-E2 V1 can operate in temperatures ranging from -40 … 85 °C (-40 … 185 °F). Its housing material is made of brass that is nickel-plated, while its sensing face is made of PBT, Green.
The connection type of this proximity switch is a connector plug M12 x 1, with 3 pins. The degree of protection is IP68, which means it is resistant to dust and can withstand being submerged in water for a limited time. The connector threading is M12 x 1, and the number of pins is 3.
You can check the P&F 4mm series with the Connector type.
