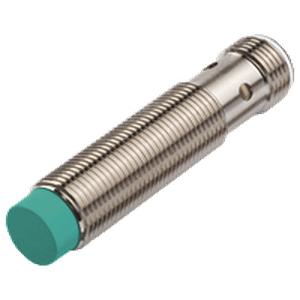

Pepperl Fuchs Inductive Proximity SensorNBB5-18GM40-Z0-V1
NBB5-18GM40-Z0-V1 Technical Specifications:
Challaturu offers the P&F NBB5-18GM40-Z0-V1 sensor, which is a flush-type Inductive Proximity Switch with a 5mm, 2-wire output, and NO switching function to your proximity switch requirements.
| Sensor Head | M18 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 5 mm |
| Installation | Flush |
| Output polarity | DC |
| Assured operating distance | 4.5 … 5.5 mm typ. 5 mm |
| Output type | 2-wire |
| Operating voltage | 5 … 60 V |
| Switching frequency | 0 … 500 Hz |
| Switching state indicator | LED, yellow |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | brass, nickel-plated |
| Sensing face | PBT, green |
| Degree of protection | IP67 |
Product Documentation: NBB5-18GM40-Z0-V1
Related Products: NBB5-18GM40-Z0-V1
NBB0 6-3M22-E2
Inductive Proximity Sensor, Sensor diameter: 0.6mm, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBN8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB1-3M22-E2
Inductive Proximity Sensor, Rated operating distance: 1 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 700 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBN8-12GM50-E2
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Sensor length: 50mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-36V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB5-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
The Pepperl Fuchs NBB5-18GM40-Z0-V1 Proximity Sensor is a device with a normally open (NO) switching function and a rated operating distance of 5 mm. The device is designed for flush installation and has a DC output polarity. It has an assured operating distance of 4.5 to 5.5 mm, with a typical value of 5 mm. The output type of the device is 2-wire, and it operates with a voltage range of 5 to 60 V.
The switching frequency of the device ranges from 0 to 500 Hz, and it has a yellow LED switching state indicator. The ambient temperature range for the device is -40 to 85 °C (-40 to 185 °F). The device comes with a 4-pin connector plug of M12 x 1 type for the connection.
The housing of the device is made of brass and nickel-plated, while the sensing face is made of green PBT material. The device has a degree of protection from IP67, making it resistant to dust and water ingress.
