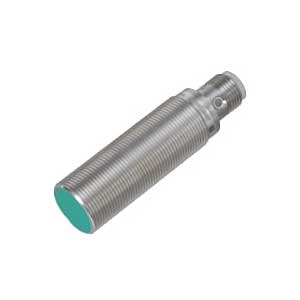

Pepperl Fuchs NBB5-18GM50-E2-V1
The technical specifications for the Pepperl Fuchs NBB5-18GM50-E2-V1 are:
- M18 diameter
- Sensing distance of 5mm
- Flush type installation
- PNP output with 3-wire configuration
- Switching function of Normally Open (NO)
- Sensor length of 50mm
- Operating voltage of DC 10-30V
- The electrical connection of the M12 connector type
₹850.00
In stock
Pepperl Fuchs NBB5-18GM50-E2-V1 Technical Specifications:
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 4.05 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 3.8 mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.3 | |
| Reduction factor Cu | 0.3 | |
| Reduction factor r304 | 0.7 | |
| Reduction factor brass | 0.49 | |
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 800 Hz | |
| Hysteresis | Typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load supply current | ≤ 20 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Connection type | Connector M12 x 1, 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| Mission Time (TM) | 20 a | |
Product Documentation: NBB5-18GM50-E2-V1
Here is the main technical specification of Pepperl Fuchs Inductive Proximity Sensor NBB5-18GM50 E2 V1: M18 Dia, Flush, PNP, 5mm Sensing, Normally Open, Connector type.
If you want to know all range Pepperl Fuchs proximity models you can check.
Related Products: NBB5-18GM50-E2-V1
NBB5-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

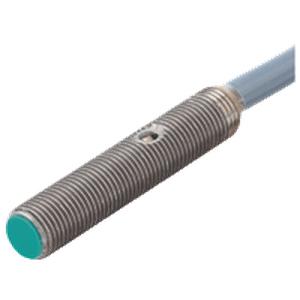

NBB0 8-5GM25-E2
