Pepperl Fuchs Proximity Switch

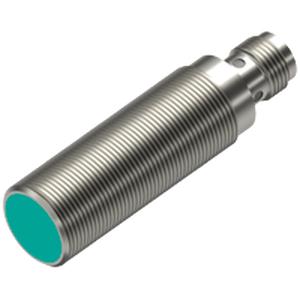

NBB8-18GM50-A2-V1
Challaturu is providing the Pepperl Fuchs NBB8-18GM50-A2-V1 Inductive and Capacitive Sensors with a sensing distance of 8mm, PNP & 3 Wire output, NO Switching function, and a flush type design.
NBB8-18GM50-E2-V1 Technical Specifications:
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 8 mm | |
| Installation | Flush | |
| Output polarity | DC | |
| Output Type | 3-wire | |
| Operating voltage | 5 … 36 V | |
| Switching frequency | 0 … 1350 Hz | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) | |
| Connection type | Connector plug | |
| Housing material | brass, white bronze coated | |
| Sensing face | PBT, green | |
| Degree of protection | IP68 | |
| Connector Threading | M12 x 1 | |
| Connector Number of pins | 4 | |
Product Documentation: NBB8-18GM50-A2-V1
Related Products: NBB8-18GM50-A2-V1
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB4-12GM50-E2
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Sensor length: 50mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 10-30V, Housing material: PBT, Degree of protection: IP68
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN4-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 2650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB20-U1-A2-M
Inductive Proximity Sensor, Rated operating distance: 20 mm, Switching function: Complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 200 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Screw terminals, Operating voltage: 10 … 60 V, Housing material: PA/metal with epoxy powder coating, Degree of protection: IP68 / IP69K.
NBB4-12GM30-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB4-12GM30-E0-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-8GM40-A2-V1
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1 , 4-pin, Operating voltage: 5 … 30 V, Housing material: Brass, nickel-plated, Degree of protection: IP67.
NBB2-V3-E0
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 1000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V DC, Housing material: PBT, Degree of protection: IP67.
NBB2-8GS35-E2-V1
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, 4-pin, Operating voltage: 5 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB3-V3-Z4
Inductive Proximity Sensor, Rated operating distance: 3 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 2000 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 60 V, Housing material: PBT, Degree of protection: IP67.
NBB4-12GM50-E0
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68, Cable length: 2 m.
NBB20-U1-A2
Type of sensor: Inductive Proximity Sensor, Rated operating distance: 20 mm, Switching function: Complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 440 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Screw terminals, Operating voltage: 10 … 30 V DC, Housing material: PA/metal with epoxy powder coating, Degree of protection: IP68 / IP69K.
NBB2-8GM40-E2-V1
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, 4-pin, Operating voltage: 5 … 30 V, Housing material: Brass, nickel-plated, Sensing face: LCP, Degree of protection: IP67.
Challaturu Automation offers the Pepperl Fuchs NBB8-18GM50-A2-V1 Inductive Proximity Switches, which feature a sensing distance of 8mm, PNP & 3 Wire output, NO Switching function, and a flush type design.
The sensor’s technical specifications include a switching function of normally open (NO), an output type of PNP, and a rated operating distance of 8mm. The installation is flush, and the output polarity is DC. The output type is 3-wire, and the operating voltage is between 5 and 36 V, with a switching frequency of 0 to 1350 Hz. The sensor features a multihole-LED yellow switching state indicator, and its ambient temperature range is -40 to 85 °C (-40 to 185 °F).
The connection type for this sensor is a connector plug, and its housing material is made of brass with a white bronze coating. The sensing face is made of PBT material in green color, and the degree of protection is IP68. The connector threading is M12 x 1, and it has four pins.
You can check P&F 8mm series with Connector type.
