Pepperl Fuchs Inductive Sensors

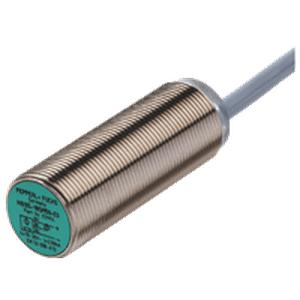

NBB8-18GM50-E2-M
If you need a flush installation, Normally Open (NO) switching function, PNP output, and an 8mm sensing distance, look no further than the Pepperl Fuchs NBB8-18GM50-E2-M Proximity Sensors available at Challaturu Automation.
NBB8-18GM50-E2-M Technical Specifications:
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 8 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Output Type | 3-wire | |
| Operating voltage | 5 … 60 V | |
| Switching frequency | 0 … 1500 Hz | |
| Switching state indicator | LED, yellow | |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) | |
| Connection type | cable PUR, 2 m | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Degree of protection | IP68 / IP69K | |
| Cable diameter | 6 mm ± 0.2 mm | |
Product Documentation: NBB8-18GM50-E2-M
Related Products: NBB8-18GM50-E2-M
NBB4-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Type of voltage: DC, Connection type: Connector plug, Operating voltage: DC 5-36V, Housing material: Brass, white bronze coated, Sensing face: PBT, green, Degree of protection: IP68.
NBB5-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB20-U1-E2
Inductive Proximity Sensor, Sensor diameter: Not specified, Rated operating distance: 20 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 440 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Screw terminals, Operating voltage: 10 … 30 V, Housing material: PA/metal with epoxy powder coating, Degree of protection: IP68 / IP69K.
NBB4-12GM50-E0-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 2200 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, 3-pin, Operating voltage: 7 … 30 V, Housing material: Brass with nickel-plating, Degree of protection: IP68 / IP69K.
NBB5-18GM50-E2-5M
Inductive Proximity Sensor, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68, Cable length: 5 meters.
NBN8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB4-12GM50-E3-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally closed (NC), Output type: PNP, Installation: Flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB0 6-4GM22-E2
Inductive Proximity Sensor, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB15-30GM50-E0-M
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 600 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable PUR, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP68 / IP69K.
NBB2-12GM30-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-8GM30-E2-V1
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable connector M8 x 1 , PVC , 200 mm, Operating voltage: 5 … 30 V, Housing material: Brass with nickel plating, Degree of protection: IP67.
NBN3-8GM50-E2
Inductive Proximity Sensor, Sensor diameter: M8, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 4500 Hz, Output type: 3-wire, Sensor length: Not specified, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-30V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB1-4GM22-E2
Inductive Proximity Sensor, Rated operating distance: 1 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 700 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
Look no further than Challaturu Automation for your proximity sensor needs. The Pepperl Fuchs NBB8-18GM50-E2-M sensor is the ideal solution for those requiring a flush installation, normally open (NO) switching function, PNP output, and an 8mm rated operating distance. The sensor has a 3-wire output type with a DC output polarity, and its operating voltage ranges from 5 to 60 V.
The yellow LED switching state indicator helps with troubleshooting and setup, and the sensor’s switching frequency ranges from 0 to 1500 Hz. With a housing material made of nickel-plated brass and a sensing face constructed from PBT, the sensor is durable and can withstand harsh environments. Its degree of protection rating is IP68 / IP69K, and its cable diameter is 6mm ± 0.2 mm.
The sensor comes with a cable PUR connection type with a 2-meter cable length, ensuring a reliable and robust solution for your proximity sensing needs. The sensor’s technical specifications make it a versatile option for a wide range of applications. The Pepperl Fuchs Inductive Sensor, available at Challaturu Automation, is the perfect fit for those needing a high-quality proximity sensor.
You can check P&F 8mm series with cable type.
