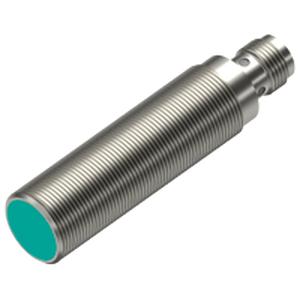

Pepperl Fuchs inductive Proximity Switch
NBB8-18GM60-A2-V1
Challaturu presents an ideal solution for your industrial requirements with the P&F NBB8-18GM60-A2-V1 Inductive Proximity Switches. These switches feature a flush-type design, PNP & 3 Wire output, and an 8mm sensing distance, making them perfect for your needs.
NBB8-18GM50-E2-V1 Technical Specifications:
| Switching function | complementary | |
| Output type | PNP | |
| Rated operating distance | 8 mm | |
| Installation | Flush | |
| Output Type | 4-wire | |
| Output polarity | DC | |
| Operating voltage | 5 … 36 V | |
| Switching frequency | 0 … 1350 Hz | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) | |
| Connection type | Connector plug | |
| Housing material | brass, white bronze coated | |
| Sensing face | PBT, green | |
| Degree of protection | IP68 | |
| Connector Threading | M12 x 1 | |
| Connector Number of pins | 4 | |
Product Documentation: NBB8-18GM60-A2-V1
Related Products: NBB8-18GM60-A2-V1
NBB2-8GM40-E2-V3
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M8 x 1 , 3-pin, Operating voltage: 5 … 30 V, Housing material: Brass, nickel-plated, Degree of protection: IP67.
NBB8-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB5-18GM40-Z0
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 500 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB5-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-12GM50-E0
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB15-30GM50-WS
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Quasi flush, Switching frequency: 0 … 20 Hz, Output type: 2-wire, Type of voltage: AC, Connection type: Cable, Operating voltage: 20 … 253 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB15-30GM50-E2
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB0 8-4M25-E2
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Sensing face: PC, Degree of protection: IP67.
NBB5-18GM40-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBB2-8GS40-E2-PUR
Inductive Proximity Sensor: Sensor diameter: M8, Rated operating distance: 2 mm Switching function: Normally open (NO) Output type: PNP Installation: Flush Switching frequency: 0 … 6000 Hz Output type: 3-wire Type of voltage: DC Connection type: Cable PUR, 2 m Operating voltage: 5 … 30 V Housing material: Stainless steel 1.4305 / AISI 303 Degree of protection: IP67.
NBB2-V3-E2
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V DC, Housing material: PBT, Degree of protection: IP67.
NBN3-8GM50-E2
Inductive Proximity Sensor, Sensor diameter: M8, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 4500 Hz, Output type: 3-wire, Sensor length: Not specified, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-30V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB2-8GM30-A2-V1
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 2 mm, Switching function: Normally closed (NC), Output type: PNP, Installation: Flush, Switching frequency: 0 … 6000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M8 x 1, Operating voltage: 5 … 30 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB15-30GM50-A2-V1
Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 15 mm, Switching function: Complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 550 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
For your industrial needs, the P&F NBB8-18GM60-A2-V1 Inductive and Capacitive Sensors available at Challaturu present an ideal solution. These switches are designed with a flush-type design, PNP & 3 Wire output, and an 8mm rated operating distance, making them perfect for a wide range of applications. The switches are complementary in switching function and have a 4-wire output type with a DC polarity. They operate within a voltage range of 5 to 36 volts, with a switching frequency of 0 to 1350 Hz.
Additionally, the switches are equipped with a yellow multihole-LED switching state indicator, which makes it easy to determine their current state. The P&F NBB8-18GM60-A2-V1 switches are designed to operate in a wide range of ambient temperatures, ranging from -40 to 85°C (-40 to 185°F). They feature a connector plug connection type, with an M12 x 1 threading and four pins.
The housing material of the switches is made of brass and is white bronze coated, while their sensing face is made of green PBT. the switches have a high degree of protection, with an IP68 rating, which makes them resistant to dust and water immersion beyond 1-meter depth. Overall, the P&F NBB8-18GM60-A2-V1 Inductive Switches are a versatile and durable solution that meets a wide range of technical requirements, making them an excellent choice for many different industrial applications.
You can check P&F 8mm series with Connector type.
