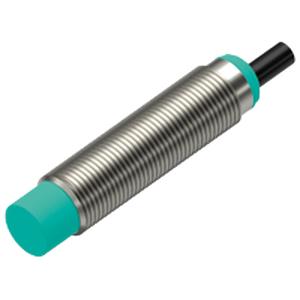

Pepperl Fuchs Inductive Sensor

NBN4-12GM50-E2

Manufacturer                Pepperl Fuchs
Product Number           NBN4-12GM50-E2
Product Description     M12, 4mm, PNP with 3-wire, NO, Non-Flush, Cable Type

Original price was: ₹1,900.00.Current price is: ₹950.00.

In stock

If you’re in need of an M12 diameter with a 4mm sensing distance, PNP, NO output, and non-flush type Sensor, Challaturu has you covered with the P&F NBN4-12GM50-E2 Inductive sensors.

NBN4-12GM50-E2 Technical Specifications:

Switching function Normally open (NO)
Housing diameter 12 mm
Output type PNP
Rated operating distance 4 mm
Installation Non-flush
Output type 3-wire
Operating voltage 5 … 36 V
Switching frequency 0 … 2650 Hz
Switching state indicator LED, yellow
Connection type Cable
Housing material brass, nickel-plated
Sensing face PBT, Green
Degree of protection IP68

Product Documentation: NBN4-12GM50-E2

Related Products: NBN4-12GM50-E2

NBB4-12GM50-E2-V1

Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Type of voltage: DC, Connection type: Connector plug, Operating voltage: DC 5-36V, Housing material: Brass, white bronze coated, Sensing face: PBT, green, Degree of protection: IP68.

NBB0 6-4GM22-E2

Inductive Proximity Sensor, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.

NBB5-18GM40-Z0

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Flush, Switching frequency: 0 … 500 Hz, Output type: 2-wire, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: 5 … 60 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.

NBN8-18GM50-E2

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

NBN8-18GM50-E2-V1

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

NBB5-18GM50-E2-V1

Inductive Proximity Sensor, Sensor diameter: M18, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Rated operating distance: 5 mm, Type of voltage: DC, Connection type: Connector plug, Operating voltage: DC 5-36V, Housing material: Brass, white bronze coated, Sensing face: PBT, green, Degree of protection: IP68.

NBN4-12GM40-E2-V1

Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 4 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 2650 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

NBN3-8GM30-E2-V1

Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 3 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 4500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1 , 4-pin, Operating voltage: 5 … 30 V, Housing material: Brass with nickel-plating, Degree of protection: IP67.

NBN25-30GM50-US

Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 25 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Non-flush, Switching frequency: 30 Hz, Output type: 3-wire, Type of voltage: AC/DC, Connection type: Cable, Operating voltage: 20 … 250 V AC/20 … 300 V DC, Housing material: Brass, nickel-plated, Degree of protection: IP67.

NBN15-30GM40-Z0

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: Two-wire, Installation: Non-flush, Switching frequency: 0 … 150 Hz, Type of voltage: DC, Operating voltage: 5 … 60 V, Housing material: Brass with nickel plating, Degree of protection: IP67.

NBN15-30GM60-I3

Analog Inductive Proximity Sensor, Sensor diameter: M30, Rated operating distance: 5-15 mm, Output type: Analog current output, Installation: non-flush, Output polarity: DC, Measurement range: 5-15 mm, Output type: 3-wire, Operating voltage: 15-30 V DC, No-load supply current: ≤ 12 mA, Analog output: 0-20 mA, Housing material: Stainless steel V2A, Sensing face: PBT, Degree of protection: IP67, Connection type: Cable PVC.

NBN15-30GM50-E2

Inductive Proximity Sensor, Rated operating distance: 15 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1150 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

NBN12-18GM50-E2-V1

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 12 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1300 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

NBN12-18GM50-E0

Inductive Proximity Sensor, Rated operating distance: 12 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Non-flush, Switching frequency: 0 … 1300 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68. Cable length: 2 m.

NBB8-18GM60-A2-V1

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Complementary, Output type: PNP, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 4-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

NBN12-18GM50-E2-V1

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 12 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 1300 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

NBB8-18GM50-E2-V1-M

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1 , 3-pin, Operating voltage: 5 … 60 V, Housing material: Brass, nickel-plated, Degree of protection: IP68 / IP69K.

NBB8-18GM50-E0-V1

Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 8 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug, Operating voltage: 5 … 36 V, Housing material: Brass with white bronze coating, Degree of protection: IP68.

Pepperl Fuchs is a manufacturer of high-quality proximity switches, inductive sensors, and capacitive sensors. One of their products is the NBN4-12GM50-E2, which has the following technical specifications: The switching function of this sensor is normally open (NO), and it is an M12 Proximity Switch. It has a PNP output type and a rated operating distance of 4 mm.

The installation type is non-flush and it has a 3-wire output type. The operating voltage range for this sensor is 5 to 36 volts, and it has a switching frequency range of 0 to 2650 Hz. The switching state is indicated by a yellow LED, which is useful for monitoring its performance.

The connection type for this inductive proximity sensor is a cable, and it has a housing material made of brass and nickel plating. The sensing face of this sensor is made of PBT material in a green color. The degree of protection for this sensor is IP68, which means that it is dust tight and water-resistant.

You can check P&F 4mm series with cable type.
