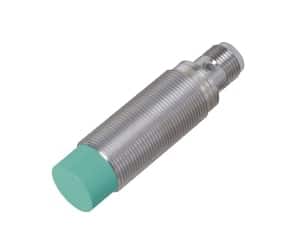

Pepperl+Fuchs Inductive Sensors NBN8-18GM50-E2-V1
₹950.00
In stock
NBN8-18GM50-E2-V1 Technical Specifications:
Pepperl Fuchs NBN8-18GM50-E2-V1 inductive sensor is designed for automation applications and features a normally open (NO) switching function with a PNP output type and a 3-wire connection. It has a rated operating distance of 8 mm and is designed for Non-flush installation. The sensor operates on a DC output polarity with an operating voltage range of 10 to 30 V.
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 8 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 6.48 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 6.08 mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.7 | |
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 500 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load supply current | ≤ 18 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 18 mm | |
| Degree of protection | IP67 | |
| MTTFd | 1190 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
Product Documentation: NBN8-18GM50-E2-V1
Here is the main technical specification of Pepperl Fuchs Inductive Proximity Sensor NBB5-18GM50 E2 V1: M18 Dia, Non-Flush, PNP, 8mm Sensing, Normally Open, Connector type.
If you want to know all range Pepperl Fuchs proximity models you can check.
