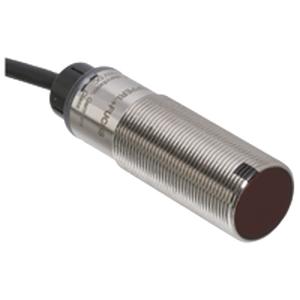

P&F Diffuse Mode Sensor OBD300-12GM40-E5-V1
Challaturu offers a P&F Photoelectric sensor OBD300-12GM40-E5-V1 with a Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 300 mm detection range, red light, light/dark on, 1 PNP output, M12 plug
OBD300-12GM40-E5-V1 Technical Specifications:
| Detection range | 0 … 300 mm |
| Adjustment range | 25 … 300 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Diameter of the light spot | approx. 20 mm at a distance of 300 mm |
| Light type | red, 640 nm |
| Light source | LED |
| Operating voltage | 10 … 30 V DC, class 2 |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Operation indicator | LED green: Power on |
| Function indicator | LED yellow ON: lights when the object is detected |
| Switching type | light/dark on electrically switchable |
| Function indicator | LED yellow ON: lights when the object is detected |
| Response time | 0.5ms |
| Switching voltage | max. 30 V DC |
| Switching frequency | ≤ 1000 Hz |
| Ambient temperature | -30 … 60 °C (-22 … 140 °F) |
| Degree of protection | IP67 |
| Connection | 4-pin, M12 x 1 connector |
