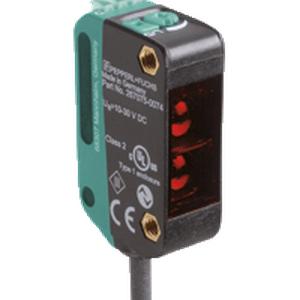

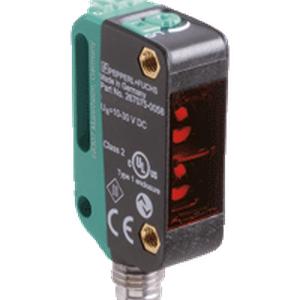

OBR7500-R100-2EP-IO-V31
OBR7500-R100-2EP-IO-V31 Technical Specifications:
IndMALL is presenting the Pepperl Fuchs OBR7500-R100-2EP-IO-V31 Photoelectric Sensor – a Retro-reflective sensor with Visible Red Light, 0-7.5m detection range, Light-on/dark-on switch, and 4-pin M8 x 1 connector.
| Effective detection range | 0 … 7.5 m |
| Reflector distance | 0.03 … 7.5 m |
| Threshold detection range | 10 m |
| Reference target | H85-2 reflector |
| Light type | modulated visible red light |
| Light source | LED |
| Operating voltage | 10 … 30 V DC |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
| Response time | 0.5ms |
| Switching voltage | max. 30 V DC |
| Switching frequency | 1000 Hz |
| Ambient temperature | -40 … 60 °C (-40 … 140 °F) |
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | M8 x 1 connector, 4-pin |
