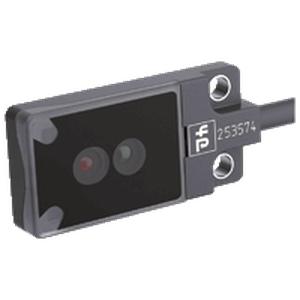

Pepperl Fuchs Triangulation Sensors OBT30-R2F-E2
The Pepperl Fuchs OBT30-R2F-E2 is a compact diffuse-type photoelectric sensor with the following technical specifications:
- Sensing distance: 0-30mm
- Output: PNP
- Operating voltage: 10-30VDC
- Light type: Modulated Visible Red Light
- Switching frequency: 1 kHz
- Electrical connection: 2 meters fixed cable type
₹4,700.00
Only 1 left in stock
Pepperl Fuchs OBT30-R2F-E2 Technical Specifications:
P&F OBT30-R2F-E2 Photoelectric Sensor is a compact diffuse sensor that is commonly used in automation applications to detect the presence or absence of an object. It has a sensing distance of 0-30mm, PNP output, and operates on a voltage of 10-30VDC. The sensor emits modulated visible red light and has a switching frequency of 1 kHz. It comes with a 2 meters fixed cable type electrical connection.
| Detection range | 1 … 30 mm | |
| Reference target | standard white, 100 mm x 100 mm | |
| Light source | LED | |
| Light type | modulated visible red light, 630 nm | |
| LED risk group labeling | exempt group | |
| Black/White difference (6 %/90 %) | < 20 % at 30 mm | |
| Angle deviation | approx. 2 ° | |
| Object size | Typ. starts from 0.1 mm @ 16 mm | |
| Diameter of the light spot | approx. 5.5 mm at a distance of 30 mm | |
| Angle of divergence | approx. 5 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 : 25000 Lux | |
| MTTFd | 800 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 µA | |
| No-load supply current | ≤ 17 mA | |
| Switching state indicator | LED, yellow | |
| MTTFd | 1600 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Operating voltage | 10 … 30 V DC | |
| No-load supply current | < 15 mA | |
| Protection class | III | |
| Switching type | NO contact/light on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 50 mA, resistive load | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | approx. 1 kHz | |
| Response time | 500 µs | |
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) | |
| Storage temperature | -20 … 70 °C (-4 … 158 °F) | |
| Housing width | 12 mm | |
| Housing height | 25.5 mm | |
| Housing depth | 4.1 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Mass | approx. 20 g | |
| Tightening torque, fastening screws | 0.25 Nm | |
| Cable length | 2 m | |
