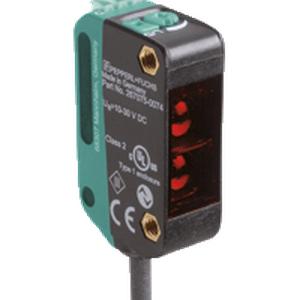

Pepperl Fuchs Triangulation sensor
OBT350-R100-2EP-IO
OBT350-R100-2EP-IO Technical Specifications:
IndMALL is providing the Pepperl Fuchs OBT350-R100-2EP-IO Photoelectric sensor, a Triangulation sensor (BGS) that offers a detection range of 5-350mm with an LED light source. The sensor includes a 2m fixed cable for convenient connectivity.
| Detection range | 5 … 350 mm | |
| Detection range min. | 5 … 25 mm | |
| Detection range max. | 5 … 350 mm | |
| Adjustment range | 25 … 350 mm | |
| Reference target | standard white, 100 mm x 100 mm | |
| Light source | LED | |
| Light type | modulated visible red light | |
| Operating voltage | 10 … 30 V DC | |
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q – BK: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link /Q – WH: NPN normally closed / dark-on, PNP normally open / light-on |
|
| Switching voltage | max. 30 V DC | |
| Signal Output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected | |
| Switching current | max. 100 mA, resistive load | |
| Switching frequency | 500 Hz | |
| Response time | 1 ms | |
| Ambient temperature | -40 … 60 °C (-40 … 140 °F) , fixed cable -25 … 60 °C (-13 … 140 °F), movable cable not appropriate for conveyor chains |
|
| Degree of protection | IP67 / IP69 / IP69K | |
| Connection | 2 m fixed cable | |
Product Documentation: OBT350-R100-2EP-IO
Related Products: OBT350-R100-2EP-IO
RLK28-8-H-2000-IR-Z/31/116
Type: Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 12 … 240 V AC/DC, Switching type: Light/dark-on, switchable, Signal output: Relay, 1 alternator, Switching frequency: 25 Hz, Response time: 20 ms, Housing (WxHxD): 25.8 mm x 88 mm x 65.5 mm, Degree of protection: IP67, Connection: Terminal compartment with 8 spring-loaded terminals, Housing material: Plastic ABS.
RL28-8-H-2000-IR/47/105
Type: Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on switchable, Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected, open collectors, Switching frequency: 250 Hz, Response time: 2 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP67, Connection: 5-pin, M12 x 1 connector, Housing material: Plastic ABS.
RL28-8-H-2000-IR/105/110
Type: Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on switchable, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Switching frequency: 250 Hz, Response time: 2 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP67, Connection: 5-pin, M12 x 1 connector, Housing material: Plastic ABS.
GLV18-55/115/120
Type: Reflective Photo Sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 640 nm), Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): M18 threaded housing design, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Plastic, Cable Length: 2 m.
OBT30-R2F-E2
Type: Triangulation Sensor, Detection range: 1 … 30 mm, Light source: LED (modulated visible red light, 630 nm), Operating voltage: 10 … 30 V DC, Switching type: NO contact / light-on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 1 kHz, Response time: 500 µs, Housing (WxHxD): 12 mm x 25.5 mm x 4.1 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate) and Stainless steel, Cable Length: 2 m.
OBT200-18GM60-E5
Type: Diffuse-type Sensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing dimensions (WxHxD): Not specified, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
OBT500-18GM60-E5
Type: Diffuse Type PhotoSensor, Detection range: 0 … 500 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
OBT300-R100-2EP-IO-V31-L
Type: Triangulation PhotoSensor, Detection range: 7 … 300 mm, Light source: Laser diode, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Light-on/dark-on electrically switchable, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1650 Hz, Response time: 300 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
GD18/GV18/115/120
Type: Thru-beam sensor, Detection range: 0 … 20 m, Light source: LED (modulated visible red light, 640 nm), Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
GD18/GV18/73/120
Type: Thru-beam sensor, Detection range: 0 … 20 m, Light source: LED (modulated visible red light, 640 nm), Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
ML100-8-1000-RT/95/103
Type: Diffuse mode sensor, Detection range: 0 … 1000 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
OBG5000-R100-2EP-IO
Type: Retroreflective sensor, Detection range: 0 … 3.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: The switching type of the sensor is adjustable. The default setting is:C/Q – BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Housing (WxHxD): 11 mm x 37.1 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
OBE12M-R100-S2EP-IO-V31
Type: Thru-beam sensor, Detection range: 0 … 12 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type (default setting: C/Q – Pin4: NPN normally open/dark-on, PNP normally closed/light-on, IO-Link), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBE20M-R100-S2EP-IO-V31-L
Type: Thru-beam sensor, Detection range: 0 … 20 m, Light source: Laser diode, Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type, Signal output: 2 push-pull (4 in 1) outputs, Switching frequency: 1250 Hz, Response time: 0.4 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBG5000-R102-2EP-IO-V31
Type: Retroreflective sensor, Detection range: 0 … 3.5 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link / Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 41.4 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT40-R102-2P1-IO-V31
Type: Triangulation sensor, Detection range: 10 … 40 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link / Q – Pin2: NPN normally open / light-on, PNP normally closed / dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 31.9 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT300-R103-2EP-IO-0-3M-V1
Type: Triangulation sensor, Detection range: 5 … 300 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 36.5 mm x 26.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 300 mm fixed cable with M12 x 1, 4-pin connector, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
IndMALL Automation is offering the Pepperl Fuchs OBT350-R100-2EP-IO Photoelectric sensor, a triangulation sensor (BGS) that utilizes a modulated visible red light LED as its light source. This sensor has a detection range of 5-350mm and comes with a 2m fixed cable for easy connectivity.
The P&F photoelectric sensor can detect objects as close as 5mm and as far as 350mm, with an adjustment range of 25-350mm. Its switching type is adjustable, and its switching voltage has a maximum of 30V DC. The sensor has two push-pull (4 in 1) outputs that are short-circuit, reverse polarity, and overvoltage protected.
It has a maximum switching current of 100mA and a switching frequency of 500Hz, with a response time of 1 ms. The sensor has a wide operating temperature range of -40 to 60°C (-40 to 140°F) with an IP67/IP69/IP69K degree of protection. However, its movable cable is not suitable for use with conveyor chains. The reference target for the sensor is a standard white, 100mm x 100mm object.
You can check the P&F Triangulation sensor with cable type.
