Pepperl Fuchs Triangulation sensor
OBT40-R102-2P1-IO-V31
OBT40-R102-2P1-IO-V31 Technical Specifications:
IndMALL offers the Pepperl Fuchs OBT40-R102-2P1-IO-V31 photoelectric switch with a Triangulation sensor, which detects 10-40mm using Visible Red Light. The switch features an M8 x 1 connector with a 4-pin for easy connectivity.
| Detection range | 10 … 40 mm |
| Detection range max. | 10 … 50 mm |
| Background suppression | starts from 50 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Light source | LED |
| Light type | modulated visible red light |
| Operating voltage | 10 … 30 V DC |
| Switching type | C/Q – Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link /Q – Pin2: NPN normally open / light-on, PNP normally closed / dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Ambient temperature | -40 … 60 °C (-40 … 140 °F) |
| Degree of protection | IP67 / IP69 / IP69K |
| Connection | M8 x 1 connector, 4-pin |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
Product Documentation: OBT40-R102-2P1-IO-V31
Related Products: OBT40-R102-2P1-IO-V31

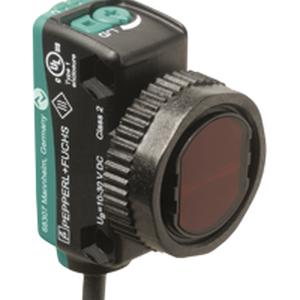

OBT300-R103-2EP-IO-0-3M-V1
Type:Triangulation sensor, Detection range: 5 … 300 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 36.5 mm x 26.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 300 mm fixed cable with M12 x 1, 4-pin connector, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
OBT40-R102-2P1-IO-V31
Type:Triangulation sensor, Detection range: 10 … 40 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link / Q – Pin2: NPN normally open / light-on, PNP normally closed / dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 31.9 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBG5000-R102-2EP-IO-V31
Type:Retroreflective sensor , Detection range: 0 … 3.5 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link / Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 41.4 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT350-R100-2EP-IO-0-3M-V1
Type:Triangulation sensor , Detection range: 5 … 350 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 37.1 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 300 mm fixed cable with M12 x 1, 4-pin connector, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
OBT350-R100-2EP-IO
Type:Triangulation sensor , Detection range: 5 … 350 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
RL31-8-H-800-RT-IO/59/73c/136
Type:Diffuse mode sensor , Detection range: 50 … 800 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: 200 Hz, Response time: 2.5 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Polycarbonate.
RLK31-54/25/31/115
Type:Retroreflective Sensor ,Detection range: 0 … 9000 mm, Light source: LED, Operating voltage: 24 … 240 V AC, 12 … 240 V DC, Switching type: Light-on, Signal output: Relay, 1 alternator, Switching frequency: 20 Hz, Response time: ≤ 25 ms, Housing (WxHxD): Not provided in the information provided, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Polycarbonate, Cable Length: 2 m.
RL31-54/73c/136
Type:Retroreflective Sensor, Detection range: 0 … 9000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Plastic.
RL31-54/25/73c/136
Type:Retroreflective Sensor, Detection range: 0 … 9000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Plastic.
RLK29-55/59/116
Type:Retroreflective Sensor, Detection range: 0 … 12 m, Light source: LED, Operating voltage: 24 … 230 V AC/DC, Switching type: Dark-on, Signal output: Relay, 1 alternator, Switching frequency: 7 Hz, Response time: 50 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: Terminal compartment, Housing material: Plastic ABS, flame resistant.
GLV18-55/115/120
Type: Reflective Photo Sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 640 nm), Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): M18 threaded housing design, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Plastic, Cable Length: 2 m.
OBT30-R2F-E2
Type: Triangulation Sensor, Detection range: 1 … 30 mm, Light source: LED (modulated visible red light, 630 nm), Operating voltage: 10 … 30 V DC, Switching type: NO contact / light-on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 1 kHz, Response time: 500 µs, Housing (WxHxD): 12 mm x 25.5 mm x 4.1 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate) and Stainless steel, Cable Length: 2 m.
OBT200-18GM60-E5
Type: Diffuse-type Sensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing dimensions (WxHxD): Not specified, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
OBT500-18GM60-E5
Type: Diffuse Type PhotoSensor, Detection range: 0 … 500 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
OBT300-R100-2EP-IO-V31-L
Type: Triangulation PhotoSensor, Detection range: 7 … 300 mm, Light source: Laser diode, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Light-on/dark-on electrically switchable, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1650 Hz, Response time: 300 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
M100-MV100-RT-76b-102-115
Type:Thru-beam sensor, Detection range: 0 … 10 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
ML100-55-G/102/115
Type:Retroreflective sensor, Detection range: 0 … 2.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
ML100-55-G/95/103
Type:Retroreflective sensor, Detection range: 0 … 2.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: Connector M8 x 1, 4-pin, Housing material: PC (Polycarbonate).
ML100-55-G-103-115
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable length: 2 m.
ML100-55/95/102
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
IndMALL Automation has replaced the Pepperl Fuchs OBT40-R102-2P1-IO-V31 photoelectric switch with a Triangulation sensor that utilizes Visible Red Light to detect objects within the range of 10-40mm. This new sensor comes equipped with an M8 x 1 connector and a 4-pin for easy connectivity.
The Pepperl Fuchs photoelectric sensor, which detects objects within a range of 10-50mm, features background suppression that starts at 50mm and a standard white, 100mm x 100mm reference target. The switch operates with a modulated visible red light and requires an operating voltage of 10-30V DC.
Additionally, the switch features a switching type of C/Q – Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link, and /Q – Pin2: NPN normally open / light-on, PNP normally closed / dark-on. It has 2 push-pull (4 in 1) outputs, which are short-circuit protected, reverse polarity protected, and overvoltage protected.
The switch has a degree of protection of IP67 / IP69 / IP69K and can operate within an ambient temperature range of -40 … 60°C (-40 … 140°F). It has a switching frequency of 500 Hz and a response time of 1 ms.
You can check the P&F Triangulation sensor with connector type.
