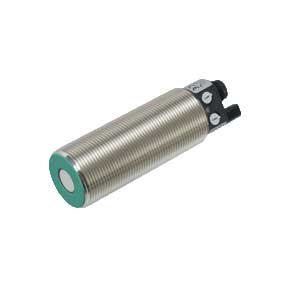

UC2000-30GM70-IE2R2-V15: P&F 100ms Diffuse Ultrasonic Sensor
Technical Specifications of P&F 100ms Diffuse Ultrasonic Sensor UC2000-30GM70-IE2R2-V15:
Spec | Value |
---|---|
Design | Cylindrical |
Sensing Range | 100 ... 2000 mm |
Output Type | 1 switch output PNP, NO ( NC contact programmable ) and 1 current output 4 ... 20 mA , ascending/descending programmable |
Connection Type | Connector plug M12 x 1 , 5-pin |
P&F 100ms Diffuse Ultrasonic Sensor UC2000-30GM70-IE2R2-V15 Technical Specifications:
Specification | Value |
---|---|
Type of Sensing | Diffuse Reflective |
Design | Cylindrical |
Sensing range | 100 ... 2000 mm |
Adjustment range | 150 ... 2000 mm |
Dead band | 0 ... 100 mm |
Standard target plate | 100 mm x 100 mm |
Transducer frequency | approx. 200 kHz |
Response delay | ≤ 100 ms |
LED green | Teach-In |
LED yellow 1 | switching state switch output |
LED yellow 2 | object in evaluation range |
LED red | - |
Operating voltage | 20 ... 30 V DC (including ripple) |
Output type | 1 switch output PNP, NO ( NC contact programmable ) and 1 current output 4 ... 20 mA , ascending/descending programmable |
Default setting | 150 ... 2000 mm ( adjustable via potentiometer ) |
Repeat accuracy | ± 3 mm |
Switching frequency | ≤ 4 Hz |
Range hysteresis | Switching hysteresis, 20 mm ( programmable ) |
Temperature influence | - |
Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
UL approval | cULus Listed, Class 2 Power Source |
CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Connection type | Connector plug M12 x 1 , 5-pin |
Degree of protection | IP65 |
Material Housing | brass, nickel-plated |
Talk to Our Engineer for P&F 100ms Diffuse Ultrasonic Sensor UC2000-30GM70-IE2R2-V15 with exclusive offers. Core System Specifications of UC2000-30GM70-IE2R2-V15 are Diffuse Reflective, Cylindrical design with a sensing range of 100 ... 2000 mm and an adjustment range of 150 ... 2000 mm. It has a dead band of 0 ... 100 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 200 kHz, and the response delay of ≤ 100 ms. Operating at 20 ... 30 V DC (including ripple), the sensor includes 1 switch output PNP, NO ( NC contact programmable ) and 1 current output 4 ... 20 mA , ascending/descending programmable with default 150 ... 2000 mm ( adjustable via potentiometer ). It offers repeat accuracy of ± 3 mm, a switching frequency of ≤ 4 Hz, range hysteresis of Switching hysteresis, 20 mm ( programmable ). The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP65 protection rating, and an brass, nickel-plated housing. Don't Miss Out on a Quote for your requirement of P&F 100ms Diffuse Ultrasonic Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
