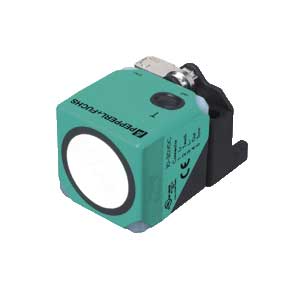

UC4000-L2-E5-V15: P&F 200mm Diffuse Ultrasonic Sensor
Technical Specifications of P&F 200mm Diffuse Ultrasonic Sensor UC4000-L2-E5-V15:
| Spec | Value |
|---|---|
| Design | Rectangular |
| Sensing Range | 200 ... 4000 mm |
| Output Type | 1 switching output E5, PNP NO/NC, programmable |
| Connection Type | Connector plug M12 x 1 , 5-pin |
P&F 200mm Diffuse Ultrasonic Sensor UC4000-L2-E5-V15 Technical Specifications:
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 200 ... 4000 mm |
| Adjustment range | 240 ... 4000 mm |
| Dead band | 0 ... 200 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 85 kHz |
| Response delay | minimum: 110 ms, factory setting: 280 ms |
| LED green | Operating display |
| LED yellow 1 | switching state |
| LED yellow 2 | - |
| LED red | error |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 switching output E5, PNP NO/NC, programmable |
| Default setting | - |
| Repeat accuracy | ≤ 0.1 % of full-scale value |
| Switching frequency | ≤ 2.8 Hz |
| Range hysteresis | programmable , preset to 1 mm |
| Temperature influence | < 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material Housing | PA-GF35 |
Please speak to our Technical Engineer for P&F 200mm Diffuse Ultrasonic Sensor UC4000-L2-E5-V15 at attractive prices. Technical Specs Summary of UC4000-L2-E5-V15 includes Diffuse Reflective, Rectangular design with a sensing range of 200 ... 4000 mm and an adjustment range of 240 ... 4000 mm. It has a dead band of 0 ... 200 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 85 kHz, and the response delay of minimum: 110 ms, factory setting: 280 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 switching output E5, PNP NO/NC, programmable. It offers repeat accuracy of ≤ 0.1 % of full-scale value, a switching frequency of ≤ 2.8 Hz, range hysteresis of programmable , preset to 1 mm, and a temperature influence of < 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP67 protection rating, and an PA-GF35 housing. Match Your Needs with a Quote for your requirement of P&F 200mm Diffuse Ultrasonic Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
