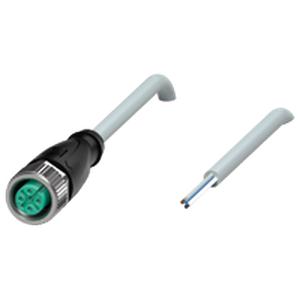

Pepperl + Fuchs Sensor-Actuator Cables
V15-G-5M-PVC
V15-G-5M-PVC Technical Specifications:
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 5 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | cable end | |
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | max. 4 A | |
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Ambient temperature | ||
| Plug connector | -40 … 90 °C (-40 … 194 °F) | |
| Cable, fixed | -40 … 70 °C (-40 … 158 °F) | |
| Cable, flexing | -5 … 70 °C (23 … 158 °F) | |
| Pollution degree | 3 | |
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling | |
| Mating cycles | min. 100 | |
| Degree of protection | IP67 / IP68 / IP69 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 4.8 mm | |
| Bending radius | > 10 x cable diameter, moving | |
| Sheath stripping force | max. 80 N / 300 mm | |
| Sheath color | grey (similar to RAL 7001) | |
| Number of cores | 5 | |
| Core cross-section | 0.34 mm2 | |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey |
|
| Core construction | 19 x 0.15 mm ∅ | |
| Length | 5 m | |
| Cable code | Li Y YM 5 x 0,34 | |
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Contact surface | Au | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | PVC | |
| Core insulation | PVC | |
| Flammability | flame-resistant | |
Buy Pepperl Fuchs V15-G-5M-PVC Inductive Proximity Sensor at wholesale rates. If you are looking for or if you are searching for Pepperl+Fuchs V15-G-5M-PVC Inductive Sensor dealers, finally you have reached the correct place. From IndMALL Automation you can get the best P&F V15-G-5M-PVC Inductive Sensor in India. We are supplying P&F pnp inductive sensors in Chennai, Bangalore, Hyderabad, Delhi, Mumbai, Pune, Vijayawada, Kolkata, Coimbatore, Kerala, Jaipur, Vapi, and Ahmedabad.
You can purchase Pepperl Fuchs V15-G-5M-PVC Proximity Sensor from IndMALL Automation. We can assure you that P&F V15-G-5M-PVC in terms of both durability and performance it’s the best choice. Pepperl Fuchs V15-G-5M-PVC Specifications Connection: Socket; Construction type: M12 ; Style: straight; Locking: screw connection; Number of pins: 5; Coding: A-coded: Connection: cable end; Operating voltage: max. 48 V AC / 60 V DC; Operating current: max. 4 A; Degree of protection: EN 60529; Plug connection: connector M12 x 1 : IEC 61076-2-101; Plug connector: -40 … 90 °C (-40 … 194 °F); Cable, fixed: -40 … 70 °C (-40 … 158 °F); Cable, flexing: -5 … 70 °C (23 … 158 °F); Pollution degree: 3.
Tightening torque: 0.6 Nm; Loosening protection: available; Tool installation: straight knurling; Mating cycles: min. 100; Degree of protection: IP67 / IP68 / IP69; Sheath diameter: 4.8 mm ; Bending radius: > 10 x cable diameter, moving; Sheath stripping force: max. 80 N / 300 mm; Sheath color: grey (similar to RAL 7001); Number of cores: 5; Core cross-section: 0.34 mm2; Core construction: 19 x 0.15 mm ∅; Length: 5 m; Cable code: Li Y YM 5 x 0,34; Screw connection: Zinc diecast, nickel-plated; Body: TPU, black; Contact surface: Au; Sheathing; PVC; Core insulation: PVC.
If you are bothered about the Pepperl+Fuchs V15-G-5M-PVC Inductive Sensor prices, you can be totally sure to get the best rates as Challaturu Engg & Automation Pvt Ltd. We bring you original & Quality Pepperl+Fuchs V15-G-5M-PVC Inductive Sensors. Procure P&F V15-G-5M-PVC Inductive Sensor Now and available the best offers on your purchase.
