Phoenix Contact Connector: Circular & DC Connectors
Phoenix Contact offers an extensive range of connectors designed for various industrial applications. These include circular, modular rectangular, and DC connectors, each suited for specific requirements. Their circular connectors are versatile and robust, ideal for transmitting signals, data up to 10 Gbps, and power up to 150 A and 630 V across different industrial settings. They feature a variety of mechanical and coding options to ensure seamless integration. Phoenix Contact’s modular rectangular connectors support high current and voltage, combine power and signal contacts, and provide environmental protection up to IP69K. For DC connections, Phoenix Contact presents connectors that ensure safety with features like ArcZero technology, which allows safe disconnection under load. These products are designed for quick, tool-free operation and are built to withstand harsh environments, ensuring durability and reliability.

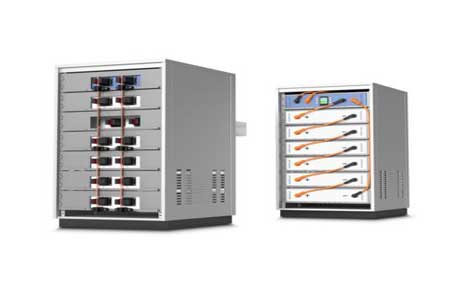

Phoenix Contact Connector: Energy Storage Systems
Designed for safe, quick installation in energy storage systems up to 1,500 V.
- Suitable for busbar and battery pole connections, with front or rear module connectivity.
- Features comprehensive touch protection to enhance safety during use.
- Connectors provide clear feedback during plugging to ensure secure connections.
- Includes rotatable designs and mechanical coding to prevent incorrect polarity connections.
- Supports modular design applications, accommodating different current ratings for flexibility in use.

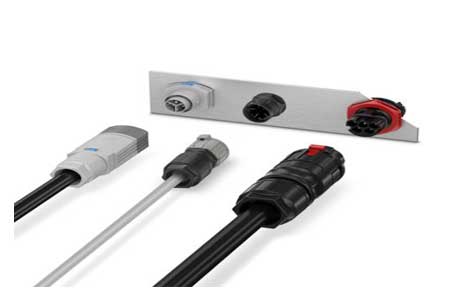

Phoenix Contact 6 Pin Connector: Installation
Designed to simplify and ensure reliable power distribution in building or infrastructure facilities.
- Connectors come in 3- and 5-position versions, allowing for a high power density in a compact design.
- Feature robust housings with IP66/IP68/IP69 degrees of protection and IK07 shock resistance.
- Offer quick and easy assembly without special tools.
- Ensure flexible power distribution design with both fixed and pluggable versions.
- Highly protected electronics as the housing does not need to be opened for connecting the power supply.
- Time savings through tool-free and plug-in connections are significant, up to 80% faster on-site connections.

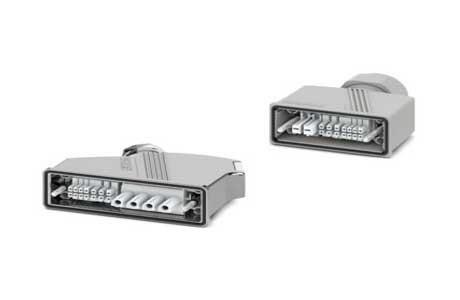

Phoenix Connector: Modular rectangular
Variety of Uses: Suitable for device, junction box, and control cabinet connections.
- High Current and Voltage: Supports currents up to 70 A and voltages up to 1000 V.
- Customizable Options: Offers various housing versions and modular contact inserts for diverse application needs.
- Hybrid Connector Capability: Combines signal and power transmission in one housing, optimizing space and connection security.
- Environmental Protection: Rated up to IP69K, ensuring durability in harsh conditions.
- Wide Range of Accessories: Includes locking latches and star-delta bridges for enhanced functionality and security.

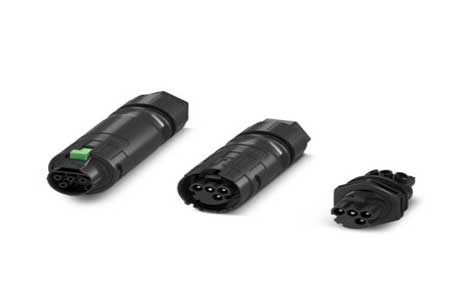

Phoenix Contact DC Connector
Safety Features: Include safe connection and disconnection under load, preventing hazardous arcs with ArcZero technology.
- Protection Levels: Rated for IP66/IP68 and IP69 conditions, and IK08 impact, making them robust against environmental challenges.
- Electrical Specifications: Support a nominal voltage of 400V or 800V and a nominal current of 20A, accommodating a cross-section of 1.5 mm² to 6 mm².

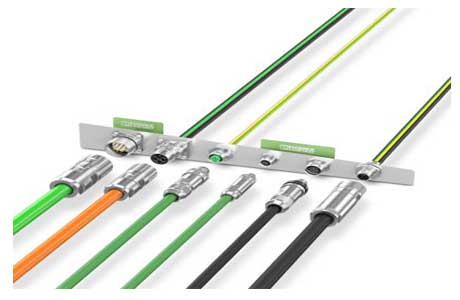

Phoenix Circular Connectors
Phoenix Contact provides a variety of metric circular connectors designed for industrial automation.
- The connectors come in different designs, including small to large sizes, straight or angled configurations, and options for field assembly or pre-molded types.
- They are engineered to transmit signals, data, and power effectively.
- Users can select from connectors capable of handling data speeds up to 10 Gbps and power up to 150 A and 630 V.
- These connectors are designed to save time during installation and offer high flexibility for customization based on specific user needs.
Phoenix Contact offers a diverse portfolio of connectors, designed to meet the rigorous demands of industrial environments. Their product range spans from robust circular connectors to modular rectangular connectors, each engineered to facilitate secure and reliable electrical connections. These connectors are suitable for a wide array of applications, including signal, data, and power transmission across various industries. Phoenix Contact connectors are characterized by their high quality, with options for different sizes, configurations, and protection ratings up to IP69K to ensure performance in any setting. They also provide innovative solutions like the quick and easy assembly without special tools, and connectors capable of handling high voltages and currents, making them a versatile choice for many sectors.
Frequently Asked Questions
What is a Phoenix connector?
A Phoenix connector is a type of electrical connector used for connecting wires and ensuring reliable signal and power transmission in various applications. Manufactured by Phoenix Contact, these connectors are known for their robustness and safety features, including the ability to connect and disconnect under load while preventing electrical arcs. They are widely used in industrial, commercial, and telecommunications environments.
What is the pitch of a Phoenix connector?
The pitch of Phoenix connectors varies depending on their use. For data signals, the green Phoenix connectors have a pitch of 3.5mm. For power, the orange Phoenix connectors use a pitch of 3.5mm when designed for 5V applications and 5.08mm when designed for 48V applications. This differentiation helps in ensuring that connectors are used appropriately according to their power handling specifications.
What is d9 connector?
A D9 connector, also known as DB9 or DE-9, is a type of electrical connector from the D-Subminiature (D-Sub) family, featuring 9 pins. It is commonly used for serial connections, allowing for the transfer of data between devices. The DB9 has the smallest “footprint” among the D-Sub connector types, making it popular for applications where space is limited. This connector is utilized in a variety of computer and network communications interfaces.
