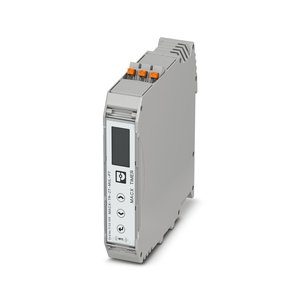

MACX-TR-2T-MUL: 1103345 - Phoenix Contact Screw Connection Relay
Technical Specifications of Phoenix Contact Screw Connection Relay MACX-TR-2T-MUL 1103345:
| Spec | Value |
|---|---|
| Nominal frequency | 48 Hz ... 63 Hz |
| Rated insulation voltage | 300 V AC |
| Output Fuse | 8 A (fast-blow) |
| Connection Method | Screw connection |
Phoenix Contact Screw Connection Relay MACX-TR-2T-MUL, 1103345 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Timer relay |
| Mechanical service life | Approx. 3x 107 cycles |
| Service life electrical | approx. 1x 105 cycles, resistive load 2000 V A |
| Nominal frequency | 48 Hz ... 63 Hz |
| Nominal power consumption | 2.5 VA (0.8 W) |
| Test voltage relay winding/relay contact | |
| Rated insulation voltage | 300 V AC |
| Rated surge voltage | |
| Input voltage range | 24 V AC/DC ... 240 V AC/DC (-15 % ... +10 %) |
| Temperature coefficient, typical | ≤ 0.01 %/°C |
| Recovery time | 100 ms |
| Setting range time | 10 ms ... 59999 min. (10 ms ... 999 h 59 min.) |
| Basic accuracy | |
| Setting accuracy | ≤ 0.5 % (＞1 s) |
| Repeat accuracy | ≤ 0.05 % (＞1 s) |
| Maximum switching voltage | 400 V AC |
| Interrupting rating (ohmic load) max. | 2000 VA (8 A / 250 V AC) |
| Output fuse | 8 A (fast-blow) |
| Connection method | Screw connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Status display | |
| Degree of protection (Housing) | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
Ask for the Pricing of Phoenix Contact Screw Connection Relay MACX-TR-2T-MUL part no: 1103345 at unbeatable prices. Detailed Specifications of MACX-TR-2T-MUL, 1103345 feature Timer relay boasts an impressive mechanical service life of approximately Approx. 3x 107 cycles ensuring long-term reliability. With a rated insulation voltage of 300 V AC it supports a wide input voltage range of 24 V AC/DC ... 240 V AC/DC (-15 % ... +10 %). The relay features a quick recovery time of over 100 ms and a versatile setting range time from 10 ms ... 59999 min. (10 ms ... 999 h 59 min.) different time ranges. For safety, it includes a 8 A (fast-blow) output fuse. The relay is connected via a secure Screw connection with a stripping length of 10 mm for easy installation. Now's the Time to Secure a Quote for your requirement of Phoenix Contact Screw Connection Relay. We're committed to offering more favorable pricing and more responsive support than other Traders.
