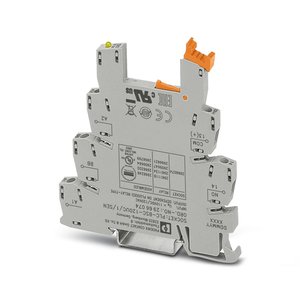

PLC-BSC-120UC/ 1/SEN: 2966074 - Phoenix Input Function Application Relay Base
Technical Specifications of Phoenix Input Function Application Relay Base PLC-BSC-120UC/ 1/SEN 2966074:
| Spec | Value |
|---|---|
| Product Type | Relay socket |
| Connection Method | Screw connection |
| Screw Thread | M3 |
| Mounting Type | DIN rail mounting |
Phoenix Input Function Application Relay Base PLC-BSC-120UC/ 1/SEN, 2966074 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Relay socket |
| Product family | PLC-INTERFACE |
| Nominal voltage UN | - |
| Nominal current IN | - |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Width | 6.2 mm |
| Height | 80 mm |
| Depth Retaining bracket | - |
| Color | gray (RAL 7042) |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Application | Input function |
| Protective circuit | Bridge rectifier |
| Nominal input voltage UN | 120 V AC/DC |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm |
| Status display | LED |
| Depth | 94 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| Enclosure Low | Required protection according to the Rules shall be provided upon installation on board |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
| Diameter | - |
| Compatible components | - |
| Input voltage range in reference to UN | - |
| Typical input current at UN | - |
| Typical response time | - |
| Typical release time | - |
| Typical release voltage | - |
| Operating voltage display | - |
| Maximum switching voltage | - |
| Minimum switching voltage | - |
| Limiting continuous current | - |
| Voltage drop at max. limiting continuous current | - |
| Output circuit | - |
| Maximum inrush current | - |
| Leakage current | - |
| Phase angle cos phi min | - |
| Max. load value | - |
| Insulation | - |
| Overvoltage category | - |
| Test voltage (Winding/contact) | - |
| Test voltage () | - |
| Rated insulation voltage | - |
| Rated surge voltage | - |
| Degree of protection | - |
| Standards/regulations | - |
| Rated control circuit supply voltage US | - |
| Voltage range with reference to US | - |
| Rated control supply current IS | - |
| Rated actuating voltage UC | - |
| Voltage range with reference to UC | - |
| Rated actuating current IC | - |
| Surge voltage protection | - |
| Switching level 1 signal ("H") (TTL signal) | - |
| Switching level 0 signal ("L") (TTL signal) | - |
| Transmission frequency Test voltage relay winding/relay contact | - |
| Switching threshold "0" signal, voltage | - |
Talk to Our Engineer for Phoenix Input Function Application Relay Base PLC-BSC-120UC/ 1/SEN part no: 2966074 with exclusive offers. Core System Specifications of PLC-BSC-120UC/ 1/SEN, 2966074 are Product family PLC-INTERFACE, designed for versatile industrial applications. This sensor features a reliable Screw connection method, accommodating conductor cross sections of 0.14 mm² ... 2.5 mm², whether rigid or flexible 0.14 mm² ... 2.5 mm². The sensor has compact dimensions, with a width of 6.2 mm and a height of 80 mm, making it suitable for space-constrained installations. The housing is finished in gray (RAL 7042), ensuring a professional appearance. It operates efficiently within ambient temperatures ranging from -25 °C ... 55 °C, both during operation and storage. The sensor is designed for easy DIN rail mounting, allowing for flexible mounting positions in any orientation. Don't Miss Out on a Quote for your requirement of Phoenix Input Function Application Relay Base. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
