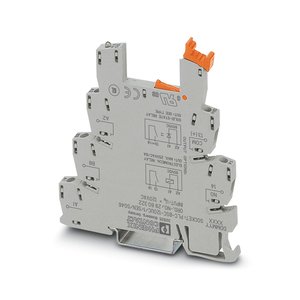

PLC-BSC-120UC/ 1/SEN/SO46: 2980322 - Phoenix 1 N/O Contact Relay Socket
Technical Specifications of Phoenix 1 N/O Contact Relay Socket PLC-BSC-120UC/ 1/SEN/SO46 2980322:
| Spec | Value |
|---|---|
| Product Type | Relay socket |
| Connection Method | Screw connection |
| Screw Thread | M3 |
| Mounting Type | DIN rail mounting |
Phoenix 1 N/O Contact Relay Socket PLC-BSC-120UC/ 1/SEN/SO46, 2980322 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Relay socket |
| Product family | PLC-INTERFACE |
| Nominal voltage UN | - |
| Nominal current IN | - |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Width | 6.2 mm |
| Height | 80 mm |
| Depth Retaining bracket | - |
| Color | gray (RAL 7042) |
| Ambient temperature (operation) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Application | Filter to prevent interference |
| Protective circuit | RCV circuit |
| Nominal input voltage UN | 120 V AC |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
| Status display | LED |
| Depth | 94 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| Enclosure Low | Required protection according to the Rules shall be provided upon installation on board |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
| Diameter | - |
| Compatible components | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1 |
| Input voltage range in reference to UN | 0.85 ... 1.1 |
| Typical input current at UN | 7 mA |
| Typical response time | 6 ms |
| Typical release time | 10 ms |
| Typical release voltage | 50 V AC |
| Operating voltage display | Yellow LED |
| Maximum switching voltage | 253 V AC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Minimum switching voltage | 24 V AC |
| Limiting continuous current | 0.75 A |
| Voltage drop at max. limiting continuous current | < 1 V |
| Output circuit | 2-conductor, floating |
| Maximum inrush current | 30 A (10 ms) |
| Leakage current | < 1 mA |
| Phase angle cos phi min | 0.5 |
| Max. load value | 4.5 A2s |
| Insulation | - |
| Overvoltage category | - |
| Test voltage (Winding/contact) | - |
| Test voltage () | - |
| Rated insulation voltage | - |
| Rated surge voltage | - |
| Degree of protection | - |
| Standards/regulations | - |
| Rated control circuit supply voltage US | - |
| Voltage range with reference to US | - |
| Rated control supply current IS | - |
| Rated actuating voltage UC | - |
| Voltage range with reference to UC | - |
| Rated actuating current IC | - |
| Surge voltage protection | - |
| Switching level 1 signal ("H") (TTL signal) | - |
| Switching level 0 signal ("L") (TTL signal) | - |
| Transmission frequency Test voltage relay winding/relay contact | - |
| Switching threshold "0" signal, voltage | - |
Ask for the Pricing of Phoenix 1 N/O Contact Relay Socket PLC-BSC-120UC/ 1/SEN/SO46 part no: 2980322 at unbeatable prices. Detailed Specifications of PLC-BSC-120UC/ 1/SEN/SO46, 2980322 feature Product family PLC-INTERFACE, designed for versatile industrial applications. This sensor features a reliable Screw connection method, accommodating conductor cross sections of 0.14 mm² ... 2.5 mm², whether rigid or flexible 0.14 mm² ... 2.5 mm². The sensor has compact dimensions, with a width of 6.2 mm and a height of 80 mm, making it suitable for space-constrained installations. The housing is finished in gray (RAL 7042), ensuring a professional appearance. It operates efficiently within ambient temperatures ranging from -40 °C ... 55 °C, both during operation and storage. The sensor is designed for easy DIN rail mounting, allowing for flexible mounting positions in any orientation. Now's the Time to Secure a Quote for your requirement of Phoenix 1 N/O Contact Relay Socket. We're committed to offering more favorable pricing and more responsive support than other Traders.
