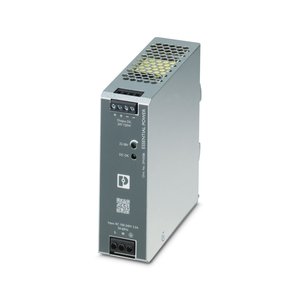

PS-EE-2G/1AC/24DC/240W/SC: 1234304 - Phoenix Single Phase to 24VDC Power Supply
Technical Specifications of Phoenix Single Phase to 24VDC Power Supply PS-EE-2G/1AC/24DC/240W/SC 1234304:
| Spec | Value |
|---|---|
| Efficiency | typ. 91 % (120 V AC) |
| Nominal output voltage | 24 V DC |
| Nominal output current (IN) | max. 10 A (PN = 240 W) |
| Mounting | DIN rail mounting |
Phoenix Single Phase to 24VDC Power Supply PS-EE-2G/1AC/24DC/240W/SC, 1234304 Technical Specifications:
| Specification | Value |
|---|---|
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 110 V AC ... 240 V AC ±10 % (PN = 240 W) |
| Inrush current | typ. 30 A (at 25 °C) |
| Frequency range (fN) | 50 Hz ... 60 Hz ±10 % |
| Efficiency | typ. 91 % (120 V AC) |
| Nominal output voltage | 24 V DC |
| Nominal output current (IN) | max. 10 A (PN = 240 W) |
| Short-circuit-proof | yes |
| Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Residual ripple | typ. 70 mVPP (with nominal values) |
| Power loss nominal load max. | < 20 W (230 V AC) |
| Insulation voltage input/output | 4 kV AC (type test) |
| Mounting type | DIN rail mounting |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C (Derating >45°C: 2.5%/K) |
| EMC requirements for noise immunity | EN 61000-6-2 |
| EMC requirements for noise emission |
Obtain a Quote for Phoenix Single Phase to 24VDC Power Supply PS-EE-2G/1AC/24DC/240W/SC part no: 1234304 at economical prices. Specifications Overview for PS-EE-2G/1AC/24DC/240W/SC, 1234304 reveals 100 V AC ... 240 V AC operates with a nominal input voltage range, ensuring versatility across various power systems. With an impressive efficiency of approximately typ. 91 % (120 V AC) it guarantees optimal energy use. The sensor provides a nominal output voltage of 24 V DC and supports a maximum output current of max. 10 A (PN = 240 W) making it suitable for demanding tasks. The residual ripple is typ. 70 mVPP (with nominal values) ensuring stable and reliable performance. Designed for easy installation, the sensor features DIN rail mounting and is rated with a IP20 degree of protection. It operates effectively in ambient temperatures ranging from -20 °C ... 70 °C (Derating >45°C: 2.5%/K). Take the First Step with a Quote for your requirement of Phoenix Single Phase to 24VDC Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
