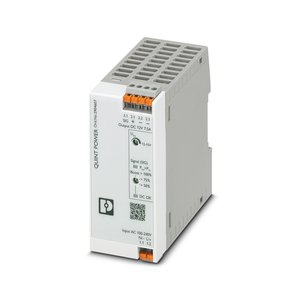

QUINT4-PS/1AC/12DC/7.5/PT: 2904607 - Phoenix Quint Power Supply 12VDC 7.5 A
Technical Specifications of Phoenix Quint Power Supply 12VDC 7.5 A QUINT4-PS/1AC/12DC/7.5/PT 2904607:
| Spec | Value |
|---|---|
| Nominal output voltage | 12 V DC |
| Nominal output current (IN) | 7.5 A |
| Mounting Type | DIN rail mounting |
Phoenix Quint Power Supply 12VDC 7.5 A QUINT4-PS/1AC/12DC/7.5/PT, 2904607 Technical Specifications:
| Specification | Value |
|---|---|
| Input voltage range | 110 V DC ... 250 V DC -20 % ... +40 % |
| Inrush current | typ. 11.4 A (at 25 °C) |
| Frequency range (fN) | 50 Hz ... 60 Hz -10 % ... +10 % |
| Efficiency | typ. 91.5 % (120 V AC) |
| Nominal output voltage | 12 V DC |
| Nominal output current (IN) | 7.5 A |
| Residual ripple | < 35 mVPP (with nominal values) |
| Short-circuit-proof | yes |
| Power loss nominal load max. | < 8.1 W (120 V AC) |
| Insulation voltage input/output | 4 kV AC (type test) |
| Mounting type | DIN rail mounting |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| EMC requirements for noise emission | EN 61000-6-3 |
| EMC requirements for noise immunity | EN 61000-6-1 |
Ask for the Pricing of Phoenix Quint Power Supply 12VDC 7.5 A QUINT4-PS/1AC/12DC/7.5/PT part no: 2904607 at unbeatable prices. Detailed Specifications of QUINT4-PS/1AC/12DC/7.5/PT, 2904607 feature Operating within an input voltage range of 110 V DC ... 250 V DC -20 % ... +40 % this sensor ensures versatile power compatibility. It features a typical inrush current of typ. 11.4 A (at 25 °C) optimizing startup performance. With an impressive efficiency of approximately typ. 91.5 % (120 V AC) the sensor provides energy-efficient operation. The nominal output voltage is 12 V DC with a robust output current of 7.5 A making it ideal for industrial applications. The residual ripple is kept under 60 °C Derating: 2,5 %/K). Now's the Time to Secure a Quote for your requirement of Phoenix Quint Power Supply 12VDC 7.5 A. We're committed to offering more favorable pricing and more responsive support than other Traders.
