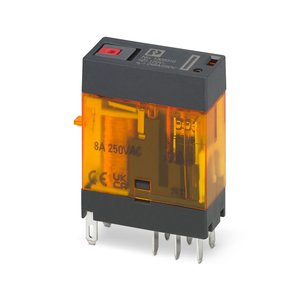

REL-FO/LRC-120AC/2X21/MS: 1308316 - Phoenix Faston Connection, 2 Changeover Contacts
Technical Specifications of Phoenix Faston Connection, 2 Changeover Contacts REL-FO/LRC-120AC/2X21/MS 1308316:
| Spec | Value |
|---|---|
| Product Type | Single relay |
| Mechanical service life | approx. 3x 107 cycles |
| Nominal input voltage UN | 120 V AC |
| Input voltage range | 96 V AC ... 132 V AC |
Phoenix Faston Connection, 2 Changeover Contacts REL-FO/LRC-120AC/2X21/MS, 1308316 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | approx. 3x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | II |
| Pollution degree | 3 |
| Service life electrical | - |
| Maximum power dissipation for nominal condition | 1 W |
| Test voltage (Winding/contact) | 5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | 3 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 2.5 kV |
| Nominal input voltage UN | 120 V AC |
| Input voltage range | 96 V AC ... 132 V AC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 10 mA (50 Hz) |
| Typical response time | - |
| Coil voltage | - |
| Status display | LED (yellow) |
| Contact switching type | 2 changeover contacts |
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC |
| Minimum switching voltage | 5 V (10 mA) |
| Limiting continuous current | 8 A |
| Maximum inrush current | 16 A (20 ms, N/O contacts) |
| Min. switching current | - |
| Interrupting rating (ohmic load) max. | 192 W (24 V DC) |
| Connection method | FASTON connection |
| Width | 13 mm |
| Height | 31.1 mm |
| Depth | 34 mm |
| Degree of protection | - |
| Degree of protection (Installation location) | IP54 (Installation location) |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Standards/regulations | IEC 60664-1 |
| Mounting type | - |
| Mounting position | any |
| Mains frequency | 50/60 Hz |
| Typical release time range | 5 ms ... 20 ms |
| Coil resistance | 6400 Ω ±10 % |
| Switching capacity | - |
| Motor load according to UL 508 | - |
| Input power dissipation for UN | 1.2 W |
| 3-phase motor load | - |
| Product family | ESSENTIAL edition |
| Relay type | Electromechanical relay |
| Test voltage () | 1 kVrms (50 Hz, 1 min., open contact) |
| Degree of protection (Relay) | RT II (Relay) |
| Inrush current, minimum | 10 mA (5 V) |
| Non-operate voltage | - |
| Safe operate voltage | - |
| Test voltage (N/O contact / N/O contact) | - |
