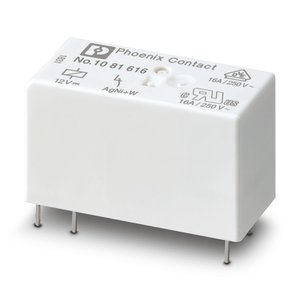

REL-MR- 12DC/1ICT: 1081616 - Phoenix 1 N/O Contact Miniature Power Relay
Technical Specifications of Phoenix 1 N/O Contact Miniature Power Relay REL-MR- 12DC/1ICT 1081616:
| Spec | Value |
|---|---|
| Product Type | Single relay |
| Mechanical service life | 3x 107 cycles |
| Nominal input voltage UN | 12 V DC |
| Input voltage range | 9.6 V DC ... 27 V DC |
Phoenix 1 N/O Contact Miniature Power Relay REL-MR- 12DC/1ICT, 1081616 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | 3x 107 cycles |
| Insulation | Safe isolation, reinforced insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Service life electrical | - |
| Maximum power dissipation for nominal condition | 0.4 W |
| Test voltage (Winding/contact) | 5 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV |
| Nominal input voltage UN | 12 V DC |
| Input voltage range | 9.6 V DC ... 27 V DC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 33 mA |
| Typical response time | 3 ms |
| Coil voltage | - |
| Status display | - |
| Contact switching type | 1 N/O contact |
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V (100 mA) |
| Limiting continuous current | 16 A |
| Maximum inrush current | 165 A (20 ms) |
| Min. switching current | 100 mA (at 12 V DC) |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| Connection method | Plug / solder connection |
| Width | 12.7 mm |
| Height | 29 mm |
| Depth | 15.7 mm |
| Degree of protection | RT II |
| Degree of protection (Installation location) | - |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | EN 50178 |
| Mounting type | Plug-in mounting |
| Mounting position | any |
| Mains frequency | - |
| Typical release time range | - |
| Coil resistance | 360 Ω ±10 % (20 °C) |
| Switching capacity | - |
| Motor load according to UL 508 | - |
| Input power dissipation for UN | - |
| 3-phase motor load | - |
| Product family | - |
| Relay type | - |
| Test voltage () | - |
| Degree of protection (Relay) | - |
| Inrush current, minimum | - |
| Non-operate voltage | - |
| Safe operate voltage | - |
| Test voltage (N/O contact / N/O contact) | - |
Please speak to our Technical Engineer for Phoenix 1 N/O Contact Miniature Power Relay REL-MR- 12DC/1ICT part no: 1081616 at attractive prices. Technical Specs Summary of REL-MR- 12DC/1ICT, 1081616 includes mechanical service life of 3x 107 cycles, designed for demanding industrial applications. The sensor operates at a nominal input voltage of 12 V DC, with an input voltage range of 9.6 V DC ... 27 V DC. The typical input current at UN is 33 mA with a response time of 8 ms. The sensor supports a maximum switching voltage of 250 V AC/DC, and a minimum switching voltage of 12 V (100 mA). It has a limiting continuous current of 16 A, with a maximum inrush current of 165 A (20 ms), and a minimum switching current of 100 mA (at 12 V DC). The interrupting rating for ohmic loads is 384 W (at 24 V DC). The connection method is via a Plug / solder connection, with a degree of protection rated at RT II. The sensor operates reliably in ambient temperatures ranging from -40 °C ... 85 °C. Match Your Needs with a Quote for your requirement of Phoenix 1 N/O Contact Miniature Power Relay. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
