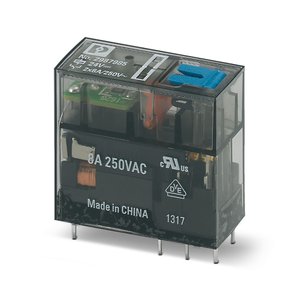

REL-MR- 24DC/21-21AU/MS: 2987985 - Phoenix Multi-layer Contact, Hard Gold Coating Relay
Technical Specifications of Phoenix Multi-layer Contact, Hard Gold Coating Relay REL-MR- 24DC/21-21AU/MS 2987985:
| Spec | Value |
|---|---|
| Product Type | Single relay |
| Mechanical service life | 5x 106 cycles |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 52.8 V DC |
Phoenix Multi-layer Contact, Hard Gold Coating Relay REL-MR- 24DC/21-21AU/MS, 2987985 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | 5x 106 cycles |
| Insulation | - |
| Overvoltage category | - |
| Pollution degree | - |
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 0.43 W |
| Test voltage (Winding/contact) | 5 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated insulation voltage | - |
| Rated surge voltage | - |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 52.8 V DC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 18 mA |
| Typical response time | 6 ms |
| Coil voltage | - |
| Status display | - |
| Contact switching type | 2 changeover contacts |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V (at 10 mA) |
| Limiting continuous current | 8 A |
| Maximum inrush current | 16 A (20 ms) |
| Min. switching current | 10 mA (at 12 V) |
| Interrupting rating (ohmic load) max. | 2000 VA (for 250 V AC) |
| Connection method | Plug / solder connection |
| Width | 12.7 mm |
| Height | 29 mm |
| Depth | 25 mm |
| Degree of protection | - |
| Degree of protection (Installation location) | - |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | EN 61810-1 |
| Mounting type | - |
| Mounting position | - |
| Mains frequency | - |
| Typical release time range | - |
| Coil resistance | - |
| Switching capacity | 1 A (at 24 V, DC13) |
| Motor load according to UL 508 | 1/4 HP, 120 V AC (N/O contact) |
| Input power dissipation for UN | - |
| 3-phase motor load | - |
| Product family | - |
| Relay type | - |
| Test voltage () | - |
| Degree of protection (Relay) | - |
| Inrush current, minimum | - |
| Non-operate voltage | - |
| Safe operate voltage | - |
| Test voltage (N/O contact / N/O contact) | - |
Reach Us by Email for Phoenix Multi-layer Contact, Hard Gold Coating Relay REL-MR- 24DC/21-21AU/MS part no: 2987985 at Discounted Rates. Key Technical Features of REL-MR- 24DC/21-21AU/MS, 2987985 are mechanical service life of 5x 106 cycles, designed for demanding industrial applications. The sensor operates at a nominal input voltage of 24 V DC, with an input voltage range of 19.2 V DC ... 52.8 V DC. The typical input current at UN is 18 mA with a response time of 9 ms. The sensor supports a maximum switching voltage of 250 V AC/DC, and a minimum switching voltage of 12 V (at 10 mA). It has a limiting continuous current of 8 A, with a maximum inrush current of 16 A (20 ms), and a minimum switching current of 10 mA (at 12 V). The interrupting rating for ohmic loads is 2000 VA (for 250 V AC). The connection method is via a Plug / solder connection, with a degree of protection rated at -. The sensor operates reliably in ambient temperatures ranging from -40 °C ... 70 °C. Navigate Your Needs with a Quote for your requirement of Phoenix Multi-layer Contact, Hard Gold Coating Relay. Our pricing and support are unrivaled, especially when compared to other Competitors.
