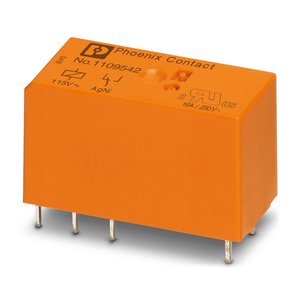

REL-MR-BL-115AC/21HC: 1109542 - Phoenix Input Voltage 115 V AC Single Relay
Technical Specifications of Phoenix Input Voltage 115 V AC Single Relay REL-MR-BL-115AC/21HC 1109542:
| Spec | Value |
|---|---|
| Product Type | Single relay |
| Mechanical service life | 1x 107 cycles |
| Nominal input voltage UN | 115 V AC |
| Input voltage range | 92 V AC ... 166.8 V AC |
Phoenix Input Voltage 115 V AC Single Relay REL-MR-BL-115AC/21HC, 1109542 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | 1x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 0.4 W |
| Test voltage (Winding/contact) | - |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV |
| Nominal input voltage UN | 115 V AC |
| Input voltage range | 92 V AC ... 166.8 V AC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 6.6 mA |
| Typical response time | - |
| Coil voltage | 115 V AC |
| Status display | - |
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (At 24 mA) |
| Limiting continuous current | 16 A |
| Maximum inrush current | 30 A (300 ms) |
| Min. switching current | 10 mA (at 12 V) |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| Connection method | Plug / solder connection |
| Width | 12.7 mm |
| Height | 29 mm |
| Depth | 15.7 mm |
| Degree of protection | RT II |
| Degree of protection (Installation location) | - |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | IEC 60664 |
| Mounting type | Plug-in mounting |
| Mounting position | any |
| Mains frequency | 50/60 Hz |
| Typical release time range | 2 ms ... 9 ms (depending on phase relation) |
| Coil resistance | 8.1 kΩ ±15 % |
| Switching capacity | 2 A (at 24 V, DC13) |
| Motor load according to UL 508 | - |
| Input power dissipation for UN | - |
| 3-phase motor load | - |
| Product family | - |
| Relay type | - |
| Test voltage () | - |
| Degree of protection (Relay) | - |
| Inrush current, minimum | - |
| Non-operate voltage | - |
| Safe operate voltage | - |
| Test voltage (N/O contact / N/O contact) | - |
Call us for Phoenix Input Voltage 115 V AC Single Relay REL-MR-BL-115AC/21HC part no: 1109542 at the best rates. Technical Attributes of REL-MR-BL-115AC/21HC, 1109542 are mechanical service life of 1x 107 cycles, designed for demanding industrial applications. The sensor operates at a nominal input voltage of 115 V AC, with an input voltage range of 92 V AC ... 166.8 V AC. The typical input current at UN is 6.6 mA with a response time of 3 ms ... 12 ms (depending on phase relation). The sensor supports a maximum switching voltage of 250 V AC/DC, and a minimum switching voltage of 5 V (At 24 mA). It has a limiting continuous current of 16 A, with a maximum inrush current of 30 A (300 ms), and a minimum switching current of 10 mA (at 12 V). The interrupting rating for ohmic loads is 384 W (at 24 V DC). The connection method is via a Plug / solder connection, with a degree of protection rated at RT II. The sensor operates reliably in ambient temperatures ranging from -40 °C ... 70 °C. Unlock Exclusive Pricing with a Quote for your requirement of Phoenix Input Voltage 115 V AC Single Relay. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
