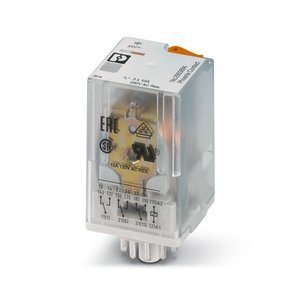

REL-OR3/L-230AC/3X21: 2903696 - Phoenix Input Voltage 230V Single Relay
Technical Specifications of Phoenix Input Voltage 230V Single Relay REL-OR3/L-230AC/3X21 2903696:
| Spec | Value |
|---|---|
| Product Type | Single relay |
| Mechanical service life | approx. 2x 107 cycles |
| Nominal input voltage UN | 230 V AC |
| Input voltage range | 195.5 V AC ... 253 V AC (20 °C) |
Phoenix Input Voltage 230V Single Relay REL-OR3/L-230AC/3X21, 2903696 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | approx. 2x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 2.99 W |
| Test voltage (Winding/contact) | 2.5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV |
| Nominal input voltage UN | 230 V AC |
| Input voltage range | 195.5 V AC ... 253 V AC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 13 mA |
| Typical response time | - |
| Coil voltage | - |
| Status display | LED (yellow) |
| Contact switching type | 3 changeover contacts |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V DC |
| Minimum switching voltage | 10 V (At 24 mA) |
| Limiting continuous current | 10 A |
| Maximum inrush current | 30 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (at 24 V) |
| Interrupting rating (ohmic load) max. | 240 W (at 24 V DC) |
| Connection method | Plug-in connection |
| Width | 35 mm |
| Height | 35 mm |
| Depth | 54.4 mm |
| Degree of protection | RT I |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient temperature (operation) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | IEC 60664 |
| Mounting type | - |
| Mounting position | any |
| Mains frequency | 50/60 Hz |
| Typical release time range | 5 ms ... 20 ms (depending on phase relation) |
| Coil resistance | 7080 Ω ±15 % |
| Switching capacity | - |
| Motor load according to UL 508 | - |
| Input power dissipation for UN | 2.6 W |
| 3-phase motor load | - |
| Product family | - |
| Relay type | - |
| Test voltage () | - |
| Degree of protection (Relay) | - |
| Inrush current, minimum | - |
| Non-operate voltage | - |
| Safe operate voltage | - |
| Test voltage (N/O contact / N/O contact) | - |
Get A Quote for Phoenix Input Voltage 230V Single Relay REL-OR3/L-230AC/3X21 part no: 2903696 at the best price. Here are the brief Technical Specifications of REL-OR3/L-230AC/3X21, 2903696 are mechanical service life of approx. 2x 107 cycles, designed for demanding industrial applications. The sensor operates at a nominal input voltage of 230 V AC, with an input voltage range of 195.5 V AC ... 253 V AC (20 °C). The typical input current at UN is 13 mA with a response time of 5 ms ... 15 ms (depending on phase relation). The sensor supports a maximum switching voltage of 250 V DC, and a minimum switching voltage of 10 V (At 24 mA). It has a limiting continuous current of 10 A, with a maximum inrush current of 30 A (20 ms, N/O contacts), and a minimum switching current of 10 mA (at 24 V). The interrupting rating for ohmic loads is 240 W (at 24 V DC). The connection method is via a Plug-in connection, with a degree of protection rated at RT I. The sensor operates reliably in ambient temperatures ranging from -40 °C ... 55 °C. It's Time to get a Quote for your requirement of Phoenix Input Voltage 230V Single Relay. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
