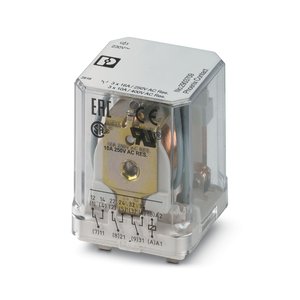

REL-PR3-230AC/3X1: 2903709 - Phoenix 3 N/O Contacts Power Relay
Technical Specifications of Phoenix 3 N/O Contacts Power Relay REL-PR3-230AC/3X1 2903709:
| Spec | Value |
|---|---|
| Product Type | Single relay |
| Mechanical service life | approx. 107 cycles |
| Nominal input voltage UN | 230 V AC |
| Input voltage range | 195.5 V AC ... 253 V AC (20 °C) |
Phoenix 3 N/O Contacts Power Relay REL-PR3-230AC/3X1, 2903709 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | approx. 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 2.76 W |
| Test voltage (Winding/contact) | 2.5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV |
| Nominal input voltage UN | 230 V AC |
| Input voltage range | 195.5 V AC ... 253 V AC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 12 mA |
| Typical response time | - |
| Coil voltage | - |
| Status display | - |
| Contact switching type | 3 N/O contacts |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 440 V AC |
| Minimum switching voltage | 10 V (At 24 mA) |
| Limiting continuous current | 16 A |
| Maximum inrush current | 50 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (at 24 V) |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| Connection method | Plug-in connection |
| Width | 38.6 mm |
| Height | 36.1 mm |
| Depth | 45.5 mm |
| Degree of protection | RT I |
| Degree of protection (Installation location) | - |
| Ambient temperature (operation) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | IEC 60664 |
| Mounting type | - |
| Mounting position | any |
| Mains frequency | 50/60 Hz |
| Typical release time range | 5 ms ... 20 ms (depending on phase relation) |
| Coil resistance | - |
| Switching capacity | 1 A (at 24 V, DC13) |
| Motor load according to UL 508 | 1/3 HP, 120 V AC (N/O contact) |
| Input power dissipation for UN | - |
| 3-phase motor load | 1500 W (at 400 V, AC3) |
| Product family | - |
| Relay type | - |
| Test voltage () | - |
| Degree of protection (Relay) | - |
| Inrush current, minimum | - |
| Non-operate voltage | - |
| Safe operate voltage | - |
| Test voltage (N/O contact / N/O contact) | 2.5 kVrms (50 Hz, 1 min., N/O contact / N/O contact) |
