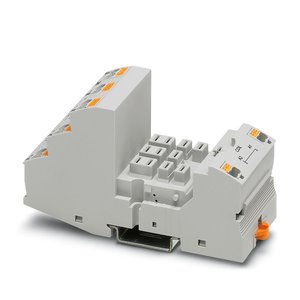

RIF-4-BPT/3X21: 2900961 - Phoenix Contact RIF-4 Relay Base
Technical Specifications of Phoenix Contact RIF-4 Relay Base RIF-4-BPT/3X21 2900961:
| Spec | Value |
|---|---|
| Product Type | Relay socket |
| Connection Method | Push-in connection |
| Screw Thread | - |
| Mounting Type | DIN rail mounting |
Phoenix Contact RIF-4 Relay Base RIF-4-BPT/3X21, 2900961 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Relay socket |
| Product family | RIFLINE complete |
| Nominal voltage UN | 440 V AC |
| Nominal current IN | max. 16 A (Depends on application/assembly) |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Screw thread | - |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Width | 43 mm |
| Height | 111 mm |
| Depth Retaining bracket | 90 mm (with retaining bracket) |
| Color | gray (RAL 7042) |
| Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Application | - |
| Protective circuit | depending on the selected input/suppressor modules |
| Nominal input voltage UN | - |
| Conductor cross section AWG | 26 ... 14 (solid) |
| Tightening torque | - |
| Status display | - |
| Depth | - |
| Flammability rating according to UL 94 | V2 (Housing) |
| Enclosure Low | - |
| Low Voltage Directive | - |
| Electromagnetic compatibility | - |
| Diameter | 3.2 mm |
| Compatible components | - |
| Input voltage range in reference to UN | - |
| Typical input current at UN | - |
| Typical response time | - |
| Typical release time | - |
| Typical release voltage | - |
| Operating voltage display | - |
| Maximum switching voltage | - |
| Minimum switching voltage | - |
| Limiting continuous current | - |
| Voltage drop at max. limiting continuous current | - |
| Output circuit | - |
| Maximum inrush current | - |
| Leakage current | - |
| Phase angle cos phi min | - |
| Max. load value | - |
| Insulation | - |
| Overvoltage category | - |
| Test voltage (Winding/contact) | - |
| Test voltage () | - |
| Rated insulation voltage | - |
| Rated surge voltage | - |
| Degree of protection | - |
| Standards/regulations | - |
| Rated control circuit supply voltage US | - |
| Voltage range with reference to US | - |
| Rated control supply current IS | - |
| Rated actuating voltage UC | - |
| Voltage range with reference to UC | - |
| Rated actuating current IC | - |
| Surge voltage protection | - |
| Switching level 1 signal ("H") (TTL signal) | - |
| Switching level 0 signal ("L") (TTL signal) | - |
| Transmission frequency Test voltage relay winding/relay contact | - |
| Switching threshold "0" signal, voltage | - |
Call us for Phoenix Contact RIF-4 Relay Base RIF-4-BPT/3X21 part no: 2900961 at the best rates. Technical Attributes of RIF-4-BPT/3X21, 2900961 are Product family RIFLINE complete, designed for versatile industrial applications. This sensor features a reliable Push-in connection method, accommodating conductor cross sections of 0.14 mm² ... 2.5 mm², whether rigid or flexible 0.14 mm² ... 2.5 mm². The sensor has compact dimensions, with a width of 43 mm and a height of 111 mm, making it suitable for space-constrained installations. The housing is finished in gray (RAL 7042), ensuring a professional appearance. It operates efficiently within ambient temperatures ranging from -40 °C ... 85 °C (Depends on application/assembly), both during operation and storage. The sensor is designed for easy DIN rail mounting, allowing for flexible mounting positions in any orientation. Unlock Exclusive Pricing with a Quote for your requirement of Phoenix Contact RIF-4 Relay Base. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
