Pilz Safety Light Curtain: PSEN Light Curtains
IndMALL Automation offers a comprehensive range of Pilz Safety Light Curtain, ensuring safety without compromising productivity. Whether you need basic Type 2 for body protection or advanced Type 4 for finger and hand safety, we have solutions tailored to your needs. Our Pilz light curtains come with features like a muting function and are designed for easy integration into any setup.
With options for various protected field heights and a compact, robust design, these pilz light curtains are ideal for safeguarding personnel around machinery. Choose Pilz for reliable safety technology, available at competitive prices across Bangalore, Pondicherry, Coimbatore, Chennai, Hyderabad, and PAN India.

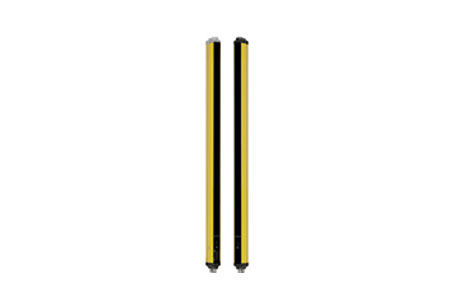

Pilz Safety Light Curtain: Basic Type 2, Body Protection
- Safety Level: Type 2, PL c.
- Applications: Body protection.
- Protected Field Height: Options include 500 mm, 800 mm, 900 mm, and 1200 mm.
- Functionality: Includes muting function.
- Supply Voltage: 24 V.
- Design: Compact and robust for industrial environments.
Pilz Light Curtain: Basic Type 2, Hand Protection
- Dimensions: 21 mm x 50 mm x 50 mm.
- Safety Level: Type 2, PL c; Applications: Hand protection.
- Protected Field Heights: Options range from 150 mm to 1800 mm.
- Light Source: LED, red; Measurement Range: 50 to 450 mm.
- Resolution: 0.1 mm; Accuracy: 1%.
- Supply Voltage: 18 to 30 V DC; Outputs: 1 analog, 1 digital (Push-pull transistor).
- Connection: M12 connector, 5-pin.

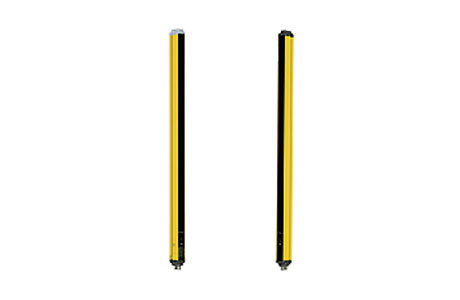

Pilz Type 4 Light Curtain: Body Protection
- Series: PSENopt.
- Safety Level: Type 4, PL e.
- Applications: Body protection.
- Protected Field Heights: Options range from 500 mm to 1200 mm.
- Functionality: Includes muting function.
- Supply Voltage: 24 V.
- Design: Compact and robust for industrial environments.
Pilz PSEN Light Curtain: Basic Type 4, Finger Protection
- Series: PSENopt.
- Safety Level: Type 4, PL e.
- Applications: Finger protection.
- Protected Field Heights: Options range from 150 mm to 1800 mm.
- Functionality: Includes muting function.
- Supply Voltage: 24 V.
- Design: Compact and robust for industrial environments.
Pilz PSENopt Basic Type 4 Light Curtain: Hand Protection
- Series: PSENopt.
- Safety Level: Type 4, PL e.
- Applications: Hand protection.
- Protected Field Heights: Options range from 150 mm to 1800 mm.
- Functionality: Includes muting function.
- Supply Voltage: 24 V.
- Design: Compact and robust for industrial environments.
Pilz PSENopt II Basic Type 3 Light Curtain for Hand Protection
- Series: PSENopt II.
- Safety Level: Type 3, PL d.
- Applications: Hand protection.
- Protected Field Heights: Options range from 150 mm to 1800 mm.
- Functionality: Includes muting function.
- Supply Voltage: 24 V.
- Design: Compact and robust for industrial environments.
Pilz PSENopt II Basic Type 4 Light Curtain: Finger Protection
- Safety Level: Type 4, PL e.
- Applications: Finger protection.
- Protected Field Heights: Options range from 150 mm to 1800 mm.
- Functionality: Includes muting function.
- Supply Voltage: 24 V.
- Design: Compact and robust for industrial environments.
Pilz PSENopt II Basic Type 3 : Body Protection
- Safety Level: Type 3, PL d.
- Applications: Body protection.
- Protected Field Heights: Ranging from 450 mm to 1500 mm.
- Supply Voltage: 24 V.
- Functionality: Includes muting function.
- Design: Compact and robust for industrial environments.

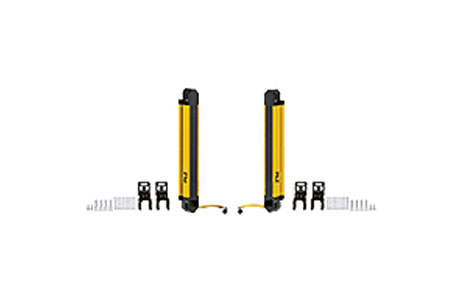

Pilz Light Curtains: PSENopt II Basic Type 4 Body Protection
- Safety Level: Type 4, PL e.
- Applications: Body protection.
- Protected Field Heights: Ranging from 450 mm to 1500 mm.
- Supply Voltage: 24 V.
- Functionality: Includes muting function.
- Design: Compact and robust for industrial environments.
Frequently Asked Questions
What are the 2 Categories of Light Curtains?
Light curtains are categorized into two main types: Type 2 and Type 4. Type 2 light curtains offer basic protection suitable for lower-risk applications, ensuring a balance between safety and productivity. Type 4 light curtains provide higher levels of safety for high-risk areas, meeting stringent safety standards with more robust detection capabilities.
What is Type 4 Safety Light Curtain?
Type 4 safety light curtains are advanced protective devices designed for high-risk industrial areas. They detect the presence of persons or objects within hazardous zones, offering maximum safety with high-resolution sensing.
These curtains meet stringent safety standards, ensuring reliable performance even in the most demanding applications, such as around heavy machinery or in automated production lines.
What Category is a Safety Light Curtain?
Safety light curtains are categorized based on the level of protection they provide, typically falling into Category 2 or Category 4 according to EN ISO 13849-1. Category 2 curtains are designed for lower-risk applications, while Category 4 curtains offer the highest level of safety for guarding against potential hazards in more dangerous environments.
What is Safety Light Curtain Type 2 and Type 4?
Type 2 and Type 4 safety light curtains are protective devices for machinery. Type 2 curtains provide basic protection suitable for lower-risk areas, requiring a single fault tolerance. Type 4 curtains offer a higher level of safety for high-risk areas, with multiple fault tolerance and self-checking capabilities to ensure uninterrupted protection.
What are the Benefits of Pilz Safety Light Curtains?
Pilz Safety Light Curtains offer barrier-free, safe access, enhancing productivity by minimizing downtimes. They ensure fast, straightforward installation and allow for customized protection fields. Their user-friendly LED diagnostics boost both productivity and safety.
Compliant with EN IEC 61496-1/-2, they offer finger, hand, and body protection up to PL e, ensuring space efficiency with their short reaction times and compact sizes, available in lengths from 150 to 1800 mm.
Get the best prices for a Pilz Safety Light Curtain.
