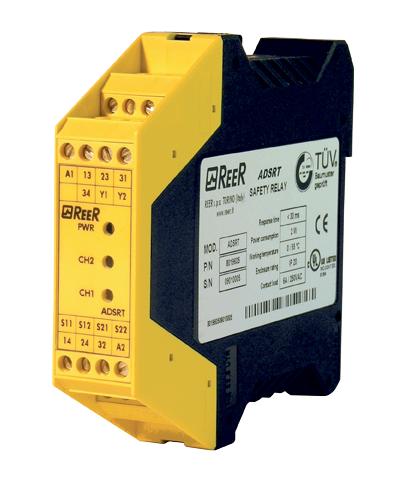

AD SRT: 1330915 - Reer 24VDC 2 NO Safety Relays
Technical Specifications of Reer 24VDC 2 NO Safety Relays AD SRT 1330915:
| Spec | Value |
|---|---|
| Safety Level | PL e |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Connections | Terminal blocks |
| Dimensions HxWxD (mm) | 99 x 22.5 x 114 |
Reer 24VDC 2 NO Safety Relays AD SRT, 1330915 Technical Specifications:
| Specification | Value |
|---|---|
| Safety level | PL e |
| Safety level (SIL / PL) | PL e - Cat. 4 - Type III C |
| Operating temperature (°C) | - 25 ... 55 |
| Response time (ms) | ≤ 30 |
| Signalling | LEDs indication for status and diagnostic: power supply. channel 1 and channel 2 |
| Connections | Terminal blocks |
| MTTFD (ISO13849) years | 36.45 |
| Safety devices to be connected | Two hand scontrol safety devices |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Product class | C |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 99 x 22.5 x 114 |
| Degree of protection | IP2X |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Packaging dimensions HxLxW (mm) | 50 x 165 x 110 |
| Custom tariff | 85365080 |
| Gross weight (g) | 220 |
| Min. switching current at 24 VDC (mA) | 6 |
| Simultaneity (s) | ≤ 0.5 |
Please speak to our Technical Engineer for Reer 24VDC 2 NO Safety Relays AD SRT part no: 1330915 at attractive prices. Technical Specs Summary of AD SRT, 1330915 includes These interfaces meet PL e - Cat. 4 - Type III C standards, ensuring top-tier protection. Operating in temperatures from - 25 ... 55, they feature a response time of ≤ 30. The interfaces include LEDs indication for status and diagnostic: power supply. channel 1 and channel 2 and use Terminal blocks. They are compatible with Two hand scontrol safety devices The safety relay outputs are configured as 2 NO (6A at 250 VAC). Designed for reliability, the interfaces are mounted on a 35 mm DIN rail fastening according to EN 50022-35 standard. With dimensions of 99 x 22.5 x 114, they operate at 24 ± 20% and offer IP2X protection. Match Your Needs with a Quote for your requirement of Reer 24VDC 2 NO Safety Relays. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
