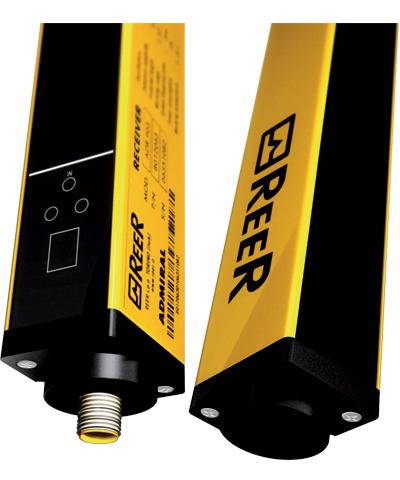

ADMIRAL AD 1955: 1330412 - Reer Admiral 52 Beams Body Light Curtain

Technical Specifications of Reer Admiral 52 Beams Body Light Curtain ADMIRAL AD 1955 1330412:

SpecValue
Safety LevelType 4 - PL e
Number of Beams52
ConnectionsM12 5-pole connectors
DetectionBody

Reer Admiral 52 Beams Body Light Curtain ADMIRAL AD 1955 1330412 Technical Specifications:

SpecificationValue
Safety levelType 4 - PL e
Protected height (mm)-
Resolution (mm)50
Max. range (m)18
RestartAutomatic
Functioning systemEmitter / Receiver
Safety level (SIL / PL)Type 4 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)0 ... 55
Response time (ms)10
Number of beams52
Max. length of the connection cables (m)-
Signalling7 segment display and LEDs for light curtain's status and diagnostics
Safety output type2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity
ConnectionsM12 5-pole connectors
MTTFD (ISO13849) years-
PFHD (IEC 61508)-
Safety outputs2 OSSD PNP (500 mA at 24 VDC)
Safety functionsWith external module
DetectionBody
Protective enclosuresNone
Packaging dimensions HxLxW (mm)145 x 2130 x 200
Product classC
Custom tariff85365019
Power supply (VDC)24 ± 20%
Overall height (mm)2061
Cross section dimensions (mm)35 x 45
Degree of protectionIP65
FasteningBack slot. side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional)
Gross weight (g)-
Operating Range (m)-
Blanking function-
Ask for the Pricing of Reer Admiral 52 Beams Body Light Curtain ADMIRAL AD 1955 part no: 1330412 at unbeatable prices. Detailed Specifications of ADMIRAL AD 1955, 1330412 feature Type 4 - PL e safety level with a protected height of - and a resolution of 50. It utilizes 52 beams for accurate finger detection and is housed in protective enclosures for industrial applications. The compact packaging dimensions are 145 x 2130 x 200, making it suitable for various environments. The sensor operates on a 24 ± 20% power supply with, ensuring reliable performance. The overall height of the unit is 2061, with cross-section dimensions of 35 x 45 mm. Designed with an IP65 degree of protection. Now's the Time to Secure a Quote for your requirement of Reer Admiral 52 Beams Body Light Curtain. We're committed to offering more favorable pricing and more responsive support than other Traders.
