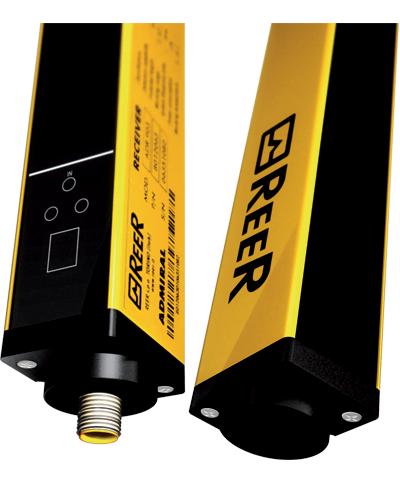

ADMIRAL AD 2103: 1330013 - Reer Admiral 112 Beams Hand Safety Curtain
Technical Specifications of Reer Admiral 112 Beams Hand Safety Curtain ADMIRAL AD 2103 1330013:
Spec | Value |
---|---|
Safety Level | Type 4 - PL e |
Number of Beams | 112 |
Connections | M12 5-pole connectors |
Detection | Hand |
Reer Admiral 112 Beams Hand Safety Curtain ADMIRAL AD 2103 1330013 Technical Specifications:
Specification | Value |
---|---|
Safety level | Type 4 - PL e |
Protected height (mm) | - |
Resolution (mm) | 30 |
Max. range (m) | 18 |
Restart | Automatic |
Functioning system | Emitter / Receiver |
Safety level (SIL / PL) | Type 4 - SILCL 3 - PL e - Cat. 4 |
Operating temperature (°C) | 0 ... 55 |
Response time (ms) | 16 |
Number of beams | 112 |
Max. length of the connection cables (m) | - |
Signalling | 7 segment display and LEDs for light curtain's status and diagnostics |
Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
Connections | M12 5-pole connectors |
MTTFD (ISO13849) years | - |
PFHD (IEC 61508) | 1.98E-08 |
Safety outputs | 2 OSSD PNP (500 mA at 24 VDC) |
Safety functions | With external module |
Detection | Hand |
Protective enclosures | None |
Packaging dimensions HxLxW (mm) | 145 x 2280 x 200 |
Product class | C |
Custom tariff | 85365019 |
Power supply (VDC) | 24 ± 20% |
Overall height (mm) | 2211 |
Cross section dimensions (mm) | 35 x 45 |
Degree of protection | IP65 |
Fastening | Back slot. side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional) |
Gross weight (g) | - |
Operating Range (m) | - |
Blanking function | - |
Mail Us for your needs in Reer Admiral 112 Beams Hand Safety Curtain ADMIRAL AD 2103 part no: 1330013 with budget-friendly prices. The Main Technical Parameters of ADMIRAL AD 2103, 1330013 inludce Type 4 - PL e safety level with a protected height of - and a resolution of 30. It utilizes 112 beams for accurate finger detection and is housed in protective enclosures for industrial applications. The compact packaging dimensions are 145 x 2280 x 200, making it suitable for various environments. The sensor operates on a 24 ± 20% power supply with, ensuring reliable performance. The overall height of the unit is 2211, with cross-section dimensions of 35 x 45 mm. Designed with an IP65 degree of protection. Customize Your Experience with a Quote for your requirement of Reer Admiral 112 Beams Hand Safety Curtain. Experience the difference with our competitive pricing and superior support over other Suppliers.
