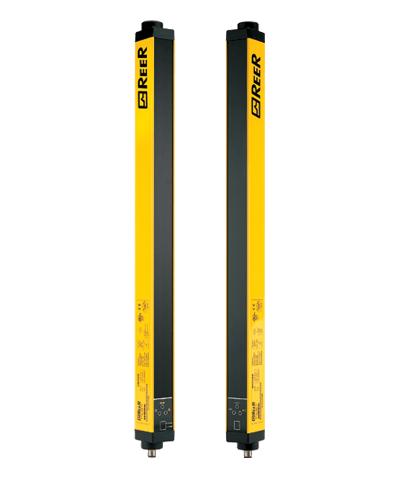

ADMIRAL AX 1202 BKM: 1334187 - Reer 20 mm Resolution Light Curtain
Technical Specifications of Reer 20 mm Resolution Light Curtain ADMIRAL AX 1202 BKM 1334187:
| Spec | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Number of Beams | 120 |
| Connections | M12 5-pole connector (emitter). M12 8-pole connector (receiver). M12 5-pole for slave connection (emitter and receiver) |
| Detection | Hand |
Reer 20 mm Resolution Light Curtain ADMIRAL AX 1202 BKM 1334187 Technical Specifications:
| Specification | Value |
|---|---|
| Safety level | Type 4 - PL e |
| Protected height (mm) | 1210 |
| Resolution (mm) | 20 |
| Max. range (m) | 18 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | 0 ... 55 |
| Response time (ms) | 28.5 |
| Number of beams | 120 |
| Max. length of the connection cables (m) | 50 |
| Signalling | 7 segment display and LEDs for light curtain's status and diagnostics |
| Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | M12 5-pole connector (emitter). M12 8-pole connector (receiver). M12 5-pole for slave connection (emitter and receiver) |
| MTTFD (ISO13849) years | 73.8 |
| PFHD (IEC 61508) | 21 |
| Safety outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety functions | With external module |
| Detection | Hand |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | - |
| Product class | C |
| Custom tariff | 85365019 |
| Power supply (VDC) | 24 ± 20% |
| Overall height (mm) | 1311 |
| Cross section dimensions (mm) | 35 x 45 |
| Degree of protection | IP65 |
| Fastening | Back slot. side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional) |
| Gross weight (g) | 6300 |
| Operating Range (m) | - |
| Blanking function | Floating |
Give Us a Call for Reer 20 mm Resolution Light Curtain ADMIRAL AX 1202 BKM part no: 1334187 at the lowest pricing. In-depth Technical Analysis of ADMIRAL AX 1202 BKM, 1334187 feature Type 4 - PL e safety level with a protected height of 1210 and a resolution of 20. It utilizes 120 beams for accurate finger detection and is housed in protective enclosures for industrial applications. The compact packaging dimensions are -, making it suitable for various environments. The sensor operates on a 24 ± 20% power supply with, ensuring reliable performance. The overall height of the unit is 1311, with cross-section dimensions of 35 x 45 mm. Designed with an IP65 degree of protection. Elevate Your Project with a Quote for your requirement of Reer 20 mm Resolution Light Curtain. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
