ADMIRAL AX 302 M: 1334121 - Reer Light Curtain With M12 Connector
Technical Specifications of Reer Light Curtain With M12 Connector ADMIRAL AX 302 M 1334121:
| Spec | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Number of Beams | 30 |
| Connections | M12 5-pole connector (emitter). M12 8-pole (receiver). M12 5-pole for slave connection (emitter and receiver) |
| Detection | Hand |
Reer Light Curtain With M12 Connector ADMIRAL AX 302 M 1334121 Technical Specifications:
| Specification | Value |
|---|---|
| Safety level | Type 4 - PL e |
| Protected height (mm) | 310 |
| Resolution (mm) | 20 |
| Max. range (m) | 18 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | 0 ... 55 |
| Response time (ms) | See technical manual |
| Number of beams | 30 |
| Max. length of the connection cables (m) | 100 |
| Signalling | 7 segment display and LEDs for light curtain's status and diagnostics |
| Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |

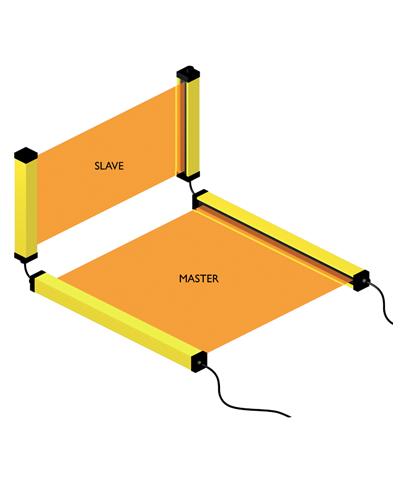

| Connections | M12 5-pole connector (emitter). M12 8-pole (receiver). M12 5-pole for slave connection (emitter and receiver) |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 1.17E-08 |
| Safety outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Hand |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 450 x 200 |
| Product class | C |
| Custom tariff | 85365019 |
| Power supply (VDC) | 24 ± 20% |
| Overall height (mm) | 401 |
| Cross section dimensions (mm) | 35 x 45 |
| Degree of protection | IP65 |
| Fastening | Back slot. side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional) |
| Gross weight (g) | 2297.06 |
| Operating Range (m) | - |
| Blanking function | - |
