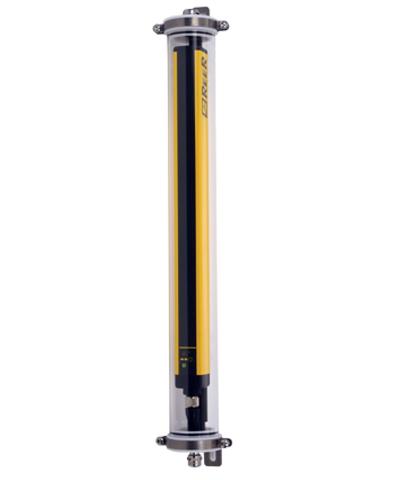

EOS4 451 X WTF: 1110032 - Reer IP69K Safety Light Curtain
Technical Specifications of Reer IP69K Safety Light Curtain EOS4 451 X WTF 1110032:
| Spec | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 460 |
| Number of beams | 45 |
| Connections | Cable output |
Reer IP69K Safety Light Curtain: EOS4 451 X WTF - 1110032
| Specification | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 460 |
| Resolution (mm) | 14 |
| Controlled Height (mm) | 450 |
| Max. Range (m) | 5 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating Temperature (°C) | 0 ... 55 |
| Response Time (ms) | 4 |
| Number of Beams | 45 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | LEDs for light curtain's status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | Cable output |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 1.52E-08 |
| Safety Outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Finger |
| Protective Enclosures | Food industry IP69K |
| Packaging Dimensions HxLxW (mm) | 145 x 760 x 200 |
| Product Class | C |
| Power Supply (VDC) | 24 ± 20% |
| Overall Height (mm) | 637 |
| Degree of Protection | IP69K |
| Fastening | Set of 4 ring brackets (included) |
| Special versions | Food and beverage. Watertight enclosure |
| Materials suitable for food applications | Yes |
| Diameter (mm) | 56 |
| Max. water pressure (bar) | 80 . . . 100 |
| Gross Weight (g) | 4303.2 |
Ask for the Pricing of Reer IP69K Safety Light Curtain EOS4 451 X WTF part no: 1110032 at unbeatable prices. Detailed Specifications of EOS4 451 X WTF, 1110032 feature 460 protected height and a 14 resolution, ensuring precise detection. It operates at a 4 response time with a 5 range. The Emitter / Receiver pair meets Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 standards, with an operating temperature range of 0 ... 55. It includes LEDs for light curtain's status and diagnostics and uses Cable output. The device is IP69K rated for durability, with an overall length of 100. It has 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity, and ensuring precise Finger, detection. With IP69K, protection and flexible mounting options, it's designed for versatile use in industrial applications. Now's the Time to Secure a Quote for your requirement of Reer IP69K Safety Light Curtain. We're committed to offering more favorable pricing and more responsive support than other Traders.
