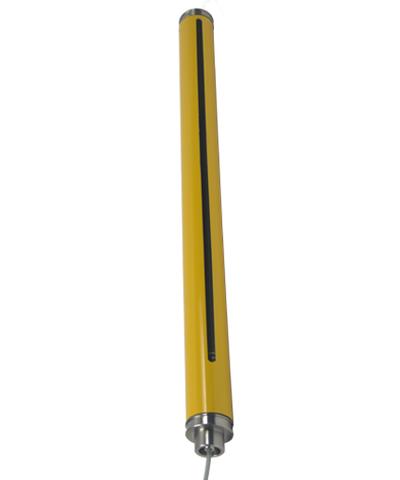

EOS4 903 AH EX: 1010255 - Reer 1080 mm Height Safety Light Curtains
Technical Specifications of Reer 1080 mm Height Safety Light Curtains EOS4 903 AH EX 1010255:
| Spec | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 910 |
| Number of beams | 46 |
| Connections | Cable output |
Reer 1080 mm Height Safety Light Curtains: EOS4 903 AH EX - 1010255
| Specification | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 910 |
| Resolution (mm) | 30 |
| Controlled Height (mm) | 900 |
| Max. Range (m) | 17 |
| Restart | Automatic |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating Temperature (°C) | - 10 ... 55 |
| Response Time (ms) | 7.5 |
| Number of Beams | 46 |
| Max. Length of the Connection Cables (m) | 10 |
| Signalling | LEDs for light curtain's status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | Cable output |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 1.53E-08 |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | With external module |
| Detection | Hand |
| Protective Enclosures | ATEX zone 2. 22 |
| Packaging Dimensions HxLxW (mm) | 145 x 1210 x 200 |
| Product Class | C |
| Power Supply (VDC) | 24 ± 20% |
| Overall Height (mm) | 1080 |
| Degree of Protection | IP65 |
| Fastening | Set of 4 ring brackets (included) |
| Special versions | ATEX |
| Operating Range (m) | 8 or 17 selectable |
| Diameter (mm) | 56 |
| Gross Weight (g) | 8030.96 |
Give Us a Call for Reer 1080 mm Height Safety Light Curtains EOS4 903 AH EX part no: 1010255 at the lowest pricing. In-depth Technical Analysis of EOS4 903 AH EX, 1010255 feature 910 protected height and a 30 resolution, ensuring precise detection. It operates at a 7.5 response time with a 17 range. The Emitter / Receiver pair meets Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 standards, with an operating temperature range of - 10 ... 55. It includes LEDs for light curtain's status and diagnostics and uses Cable output. The device is IP65 rated for durability, with an overall length of 10. It has 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity, and ensuring precise Hand, detection. With IP65, protection and flexible mounting options, it's designed for versatile use in industrial applications. Elevate Your Project with a Quote for your requirement of Reer 1080 mm Height Safety Light Curtains. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
