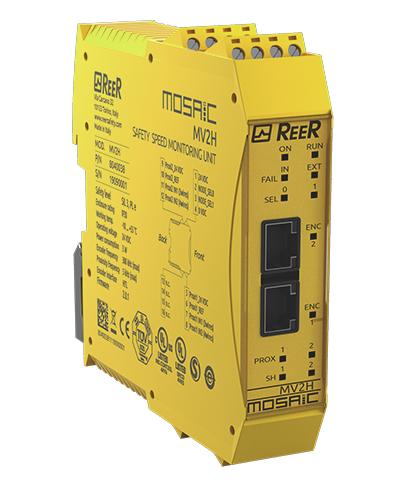

MOSAIC MV0: 1100077 - Reer IP20 Safety Controllers with DIN Rail Mounting
Technical Specifications of Reer Safety Contreoller with RJ45 Encoder Connection MOSAIC MV2SC 1100176:
| Spec | Value |
|---|---|
| Safety Level | PL e |
| Safety Inputs | 4 digital inputs |
| Connections | Removable terminal blocks. clamp contacts |
| Safety Outputs |
Reer IP20 Safety Controllers with DIN Rail Mounting MOSAIC MV0, 1100077 Technical Specifications:
| Specification | Value |
|---|---|
| Safety level | PL e |
| Safety inputs | 4 digital inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 10 ... 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the: proximity/encoder inputs and speed of the controlled axis (within the range. stand still. overspeed) condition |
| Safety output type | |
| Connections | Removable terminal blocks. clamp contacts |
| MTTFD (ISO13849) years | 30 ... 100 |
| PFHD (IEC 61508) | 1.14E-08 |
| Safety outputs | |
| Status outputs | |
| Test outputs | |
| Storage temperature (°C) | -20 ... +85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Start/Restart inputs and EDM | |
| Housing for MCM | |
| USB input | |
| Packaging dimensions HxLxW (mm) | |
| Product class | C |
| Custom tariff | |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 108 x 22.5 x 114.5 |
| Degree of protection | IP20 for housing - IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 205.4 |
Talk to Our Engineer for Reer Safety Contreoller with RJ45 Encoder Connection MOSAIC MV2SC part no: 1100176 with exclusive offers. Core System Specifications of MOSAIC MV2SC, 1100176 are provide top-tier protection with PL e safety level, featuring 4 digital inputs, SIL 3 - SILCL 3 - PL e - Cat. 4 certification. Operating efficiently between - 10 ... 55, these controllers offer clear LEDs indication for operating status and fault diagnosis. LED indication of the: proximity/encoder inputs and speed of the controlled axis (within the range. stand still. overspeed) condition. Equipped with , they ensure reliable safety outputs. The Removable terminal blocks. clamp contacts, coupled and test outputs, add to their robustness. These controllers are IP20 for housing - IP2X for terminal blockprotected enclosures, designed for 35 mm DIN rail fastening according to EN 50022-35 standard. With a compact design of 108 x 22.5 x 114.5 and a gross weight of 205.4 g, they offer reliable performance for industrial applications. Don't Miss Out on a Quote for your requirement of Reer Safety Contreoller with RJ45 Encoder Connection. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
