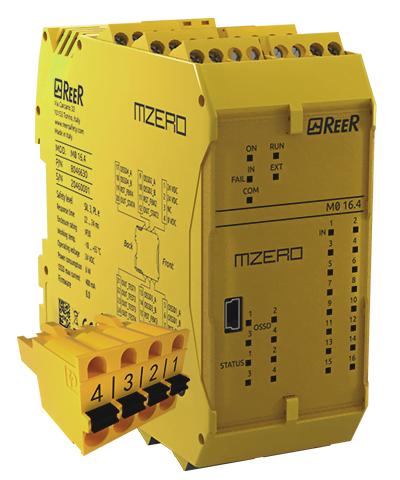

MZERO 16.4C: 1100205 - Reer Safety 16 Digital Input Safety Controllers
Technical Specifications of Reer Safety 16 Digital Input Safety Controllers MZERO 16.4C 1100205:
| Spec | Value |
|---|---|
| Safety Level | PL e |
| Safety Inputs | 16 digital inputs |
| Connections | Removable terminal blocks. clamp contacts |
| Safety Outputs | 4 OSSD pairs (400 mA) |
, Technical Specifications:
| Specification | Value |
|---|---|
| Safety level | PL e |
| Safety inputs | 16 digital inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 10 ... 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the: inputs. OSSD outputs. reset request and status outputs condition |
| Safety output type | 4 pairs OSSD PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | Removable terminal blocks. clamp contacts |
| MTTFD (ISO13849) years | 154.51 |
| PFHD (IEC 61508) | 1.53E-08 |
| Safety outputs | 4 OSSD pairs (400 mA) |
| Status outputs | 4 PNP (100 mA) |
| Test outputs | 4 |
| Storage temperature (°C) | -20 ... +85 |
| MSC connector provided | No |
| Connection with MSC BUS | |
| Start/Restart inputs and EDM | 4 (Moreover allows single input device connections) |
| Housing for MCM | No |
| USB input | Yes |
| Packaging dimensions HxLxW (mm) | 58 x 127 x 113 |
| Product class | C |
| Custom tariff | 85371091 |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 108 x 45 x 114.5 |
| Degree of protection | IP20 for housing - IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 316.3 |
IndMALL Offers Reer Safety 16 Digital Input Safety Controllers MZERO 16.4C part no: 1100205 at economical Choices. Product Tech Specs of MZERO 16.4C, 1100205 include provide top-tier protection with PL e safety level, featuring 16 digital inputs, SIL 3 - SILCL 3 - PL e - Cat. 4 certification. Operating efficiently between - 10 ... 55, these controllers offer clear LEDs indication for operating status and fault diagnosis. LED indication of the: inputs. OSSD outputs. reset request and status outputs condition. Equipped with 4 pairs OSSD PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity, they ensure reliable safety outputs. The Removable terminal blocks. clamp contacts, coupled 4 OSSD pairs (400 mA) and 4 test outputs, add to their robustness. These controllers are IP20 for housing - IP2X for terminal blockprotected enclosures, designed for 35 mm DIN rail fastening according to EN 50022-35 standard. With a compact design of 108 x 45 x 114.5 and a gross weight of 316.3 g, they offer reliable performance for industrial applications. Now's the Time to Secure a Quote for your requirement of Reer Safety 16 Digital Input Safety Controllers. Trust in our superior pricing and more dedicated support over other Distributors.
