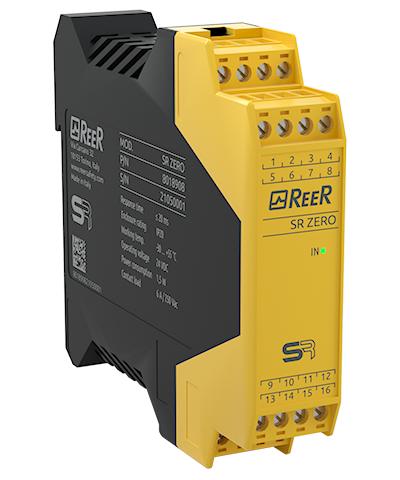

SR ZERO A: 1330802 - Reer PL e Cat.4 Safety Level Safety Relays
Technical Specifications of Reer PL e Cat.4 Safety Level Safety Relays SR ZERO A 1330802:
| Spec | Value |
|---|---|
| Safety Level | PL e |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Connections | Removable terminal blocks. screw contacts |
| Dimensions HxWxD (mm) | 99 x 22.5 x 114.5 |
Reer PL e Cat.4 Safety Level Safety Relays SR ZERO A, 1330802 Technical Specifications:
| Specification | Value |
|---|---|
| Safety level | PL e |
| Safety level (SIL / PL) | PL e - Cat. 4 |
| Operating temperature (°C) | - 30 ... 55 |
| Response time (ms) | ≤ 20 |
| Signalling | LEDs indication for input status |
| Connections | Removable terminal blocks. screw contacts |
| MTTFD (ISO13849) years | The values depend on the type of use. Refer to the technical manual |
| PFHD (IEC 61508) | The values depend on the type of use. Refer to the technical manual |
| Safety devices to be connected | Safety devices with feedback input for external relay monitor (EDM). such us EOS4 X . EOS2 X. Admiral AX. Vision VX/VXL/MXL and Janus |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Product class | C |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 99 x 22.5 x 114.5 |
| Degree of protection | IP2X |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
Mail Us for your needs in Reer PL e Cat.4 Safety Level Safety Relays SR ZERO A part no: 1330802 with budget-friendly prices. The Main Technical Parameters of SR ZERO A, 1330802 include These interfaces meet PL e - Cat. 4 standards, ensuring top-tier protection. Operating in temperatures from - 30 ... 55, they feature a response time of ≤ 20. The interfaces include LEDs indication for input status and use Removable terminal blocks. screw contacts. They are compatible with Safety devices with feedback input for external relay monitor (EDM). such us EOS4 X . EOS2 X. Admiral AX. Vision VX/VXL/MXL and Janus The safety relay outputs are configured as 2 NO (6A at 250 VAC). Designed for reliability, the interfaces are mounted on a 35 mm DIN rail fastening according to EN 50022-35 standard. With dimensions of 99 x 22.5 x 114.5, they operate at 24 ± 20% and offer IP2X protection. Customize Your Experience with a Quote for your requirement of Reer PL e Cat.4 Safety Level Safety Relays. Experience the difference with our competitive pricing and superior support over other Suppliers.
