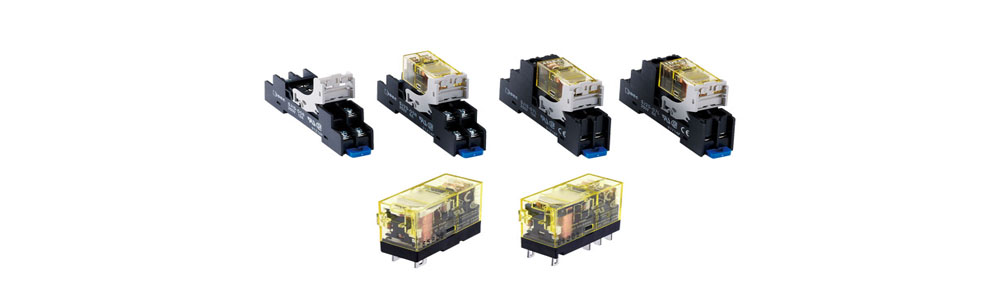

Relays play a crucial role in controlling and switching electrical circuits, and understanding the terminology associated with relays is essential for effective utilization and troubleshooting. In this guide, we delve into the world of relay terminologies, providing insights into the key terms and concepts related to relays.
From contact types such as normally open (NO) and normally closed (NC) to coil voltage, switching current, and time delay, we explore the terminology used to describe relay characteristics and functionality. Gain clarity on terms like latching relay, protective relay, and reed relay, along with their specific applications and advantages.
By familiarizing yourself with Relay terminologies, you’ll be equipped to select the right relay for your specific needs, interpret datasheets and specifications, and troubleshoot relay-related issues more effectively. Whether you are an electronics enthusiast, a technician, or an engineer, this guide will serve as a valuable resource to enhance your understanding of relay terminologies and improve your proficiency in working with relays.
A
Actuation Voltage
Actuation voltage refers to the specific voltage level required to energize the coil of a relay and initiate its switching action. When the applied voltage reaches or exceeds the actuation voltage, the magnetic field generated by the coil attracts the armature.
It is crucial to apply the correct actuation voltage to ensure the reliable operation of the relay. If the voltage is too low, the relay may not activate, while excessive voltage can cause unnecessary switching or potential damage. The actuation voltage is typically specified by the relay manufacturer and should be carefully considered.
Ambient Temperature
Ambient temperature refers to the temperature of the surrounding environment where a relay or device operates. It is a crucial factor to consider as temperature extremes can impact the performance and reliability of relays. Most relays have a specified temperature range in which they can function optimally.
Operating a relay outside of this range may result in reduced efficiency, premature wear, or even failure. It is essential to ensure that the ambient temperature remains within the specified limits to maintain reliable operation. Additional cooling or insulation measures may be necessary for extreme temperature conditions.
Arc Suppression
Arc suppression refers to the techniques and methods used to prevent or extinguish electric arcs in switches or relays. Electric arcs can cause damage to switch contacts and affect performance. Arc suppression techniques include arc chutes, magnetic blowouts, arc-resistant materials, and arc extinguishing media.
Arc chutes redirect and cool the arc, while magnetic blowouts use a magnetic field to force the arc away. Arc-resistant materials have high melting points, and arc extinguishing media help quickly quench the arc. By employing these techniques, arc suppression aims to enhance the reliability, longevity, and safety Relay of switches.
Armature
An armature is a movable component within electro-magnetic devices, like relays or motors, which converts electrical energy into mechanical motion. In relays, the armature is acted upon by an electro-magnetic field generated by the energized coil.
It moves in response to the magnetic force and causes the relay contacts to open or close. Typically made of a ferro magnetic material, the armature’s design and construction vary based on the specific application. It is a crucial element that enables the conversion of electrical energy to mechanical motion, allowing for switching.
B
Bounce Time
Bounce time, or contact bounce, is the brief period when switch contacts rapidly make and break contact before stabilizing. It can affect signal accuracy and circuit stability. Debounce circuits or software are used to counteract bounce and ensure reliable switching in precise applications.
C
Coil
The coil in a relay is a wire or conducting material wound into a coil shape around a core. When electric current passes through the coil, it generates a magnetic field. This magnetic field attracts or repels the relay’s moving component, known as the armature, causing it to move and actuate.
The coil requires specific resistance and voltage rating for proper operation. The coil is a critical component that enables the electro-magnetic functionality of the relay.
Coil Rating
Coil rating defines the reliable voltage or current range for the proper operation of a relay’s coil. It is an important parameter to consider when selecting a relay for a particular application.
Exceeding the coil rating may lead to overheating, reduced performance, or damage to the relay. The coil rating is typically specified by the manufacturer and should be followed to ensure proper operation. Choosing a relay with a matching coil rating ensures that the relay will function reliably within the specified voltage. Providing accurate and consistent switching functionality.
Coil resistance
Coil resistance refers to the electrical resistance offered by the coil winding in a relay or electro-magnetic device. It is measured in ohms (Ω) and determines the amount of current flowing through the coil when a voltage is applied.
Coil resistance depends on wire length, diameter, and material used in the coil winding, affecting its electrical characteristics. It is an important parameter to consider when selecting a relay, as it affects power consumption. heat dissipation, and electrical characteristics of the circuit. Choosing a compatible coil-resistant relay ensures optimal performance and efficient operation.
Contact
A contact refers to the metal component that physically makes or breaks the electrical connection when the relay is actuated. There are normally open (NO) contacts and normally closed (NC) contacts. When the relay is activated, the contact moves to establish or interrupt the electrical flow.
Contact Bounce
Contact bounce, or switch bounce, occurs when switch contacts rapidly make and break contact during actuation. It occurs due to mechanical vibrations or rebounding of contacts and can result in fluctuations or interruptions in the electrical signal.
Contact Force
Contact force refers to the pressure or mechanical strength exerted between the contacts of a switch or relay. When they are in the closed position. Sufficient contact force is necessary to ensure a stable and low-resistance electrical connection.
Contact Gap
Contact gap refers to the distance between the contacts of a switch or relays when they are in the open position. It is essential to have an adequate contact gap to prevent unintended electrical conductivity and ensure reliable insulation between the contacts.
Contact Life
Contact life is the Expect lifespan or working count before a switch or relay contact begins to decline or malfunction. It is an important factor in determining the durability and reliability of the switch or relay. particularly in applications with frequent switching operations. Contact life is influenced by factors such as contact material, current rating, and environmental conditions.
Contact Material
Contact material refers to the material used for the physical contacts in a switch or relay. Common contact materials include metals like silver, gold, and copper alloys. The choice of contact material depends on factors such as the desired electrical conductivity, resistance to wear, and corrosion. The specific application requirements.
Contact Rating
Contact rating indicates the safe maximum current and voltage that a switch or relay contact can handle in electrical applications. It ensures proper operation and prevents damage or failure. It indicates the contact’s maximum power or current capacity without risking damage or performance degradation.
Contact rating is crucial for ensuring the switch or relay can handle electrical demands within its limits.
Contact Resistance
Contact resistance refers to the electrical resistance encountered when current flows through the closed contacts of a switch or relay. It is caused by the inherent resistance of the contact material and the quality of the contact interface.
Low contact resistance is desirable as it minimizes power loss and ensures efficient electrical conduction. Contact resistance is specified as a maximum value to ensure reliable signal transmission and minimize heat generation. At the contact interface, maintaining optimal performance.
D
Dielectric Strength:
It refers to the maximum voltage or electric field that an insulating material or component and Can withstand without electrical breakdown. It is a measure of the material’s ability to resist electrical conduction and insulate against high voltages. Dielectric strength is crucial in applications where insulation integrity is vital to prevent electrical arcing, short circuits, or damage to equipment.
Double Pole Double Throw (DPDT):
DPDT is a switch configuration with two input terminals and four output terminals. It allows for two separate circuits to be controlled simultaneously, with each circuit having two possible output positions. DPDT switches provide able for applications requiring multiple circuits or control of different functions.
Double Pole Single Throw (DPST):
DPST is a switch configuration with two input terminals and two output terminals. It allows for the control of two separate circuits, each with a single output position. DPST switches are commonly used to control two independent devices or functions that need to be turned on or off simultaneously.
Dropout Voltage
Dropout voltage refers to the minimum voltage level required to de-energize or release the coil of a relay. It represents the voltage threshold at which the magnetic field generated by the coil weakens to the point. It can no longer hold the relay contacts in their actuated position.
Falling below the dropout voltage causes. the relay to return to its resting state, and the contacts revert to their original position. It is important to consider the dropout voltage to ensure reliable switching and proper control of the relay.
Duty Cycle
The duty cycle is a measure of the operating time of a device or system compared to its total cycle time. It is typically expressed as a percentage and represents the ratio of the device’s active to its complete cycle time.
The duty cycle in relays or switches refers to the percentage of the time. The device is energized compared to its total operating time. It is important for managing heat generation and ensuring optimal performance and longevity of the device.
E
Electrical Life
Electrical life refers to the expected lifespan of a switch or relays in terms of the number of electrical operations. it can reliably perform before its performance degrades or it fails to function correctly. It is a measure of the switch’s durability and reliability under normal operating conditions.
The electrical life is influenced by factors such as contact material, contact rating, load type, and environmental conditions. Manufacturers typically provide a specified number of operations or cycles for the electrical life of a switch. which is an important consideration when selecting a switch for a particular application.
Electro mechanical Relay
An electro mechanical relay is a type of relay that uses electro magnetic principles to control the switching of electrical circuits. It consists of an electro magnet, coil, and mechanical contacts. The electro magnet creates a magnetic field that attracts or repels the relay’s moving component, called the armature.
This movement causes the mechanical contacts to change position, either closing or opening the electrical circuit. Electro-mechanical relays are widely used in various applications, including industrial control systems, automotive electronics, and power distribution. Due to their functionality, reliability, and ability to switch high-power loads
F
Fault Indication
Fault indication alerts users about device or system faults or abnormal conditions. It provides a clear indication or signal. That something is wrong with the equipment or system, allowing for timely diagnosis and corrective action.
Fault indication methods can include visual indicators, audible alarms, status LEDs, error codes, or notifications sent to a monitoring system. Fault indication is crucial for maintaining system reliability, preventing further damage, and minimizing downtime.
H
Hysteresis
Hysteresis is a lagging or delayed response of a system to input changes. In switches or sensors, it creates a dead zone where the system remains in the same state to prevent unstable toggling. Hysteresis provides stability and noise immunity in control systems and enhances switch and sensor performance.
I
Isolation Voltage
Isolation voltage is the maximum voltage that can exist between two isolated circuits or components without causing electrical conduction or breakdown. It ensures proper electrical insulation and prevents excessive current or voltage transfer. This feature is essential in protecting sensitive components and circuits from high voltages, electrical noise, and potential damage. while maintaining safety and preventing interference within the system.
L
Latching Relay
A latching relay is a relay that stays in its switched state even when power is removed. It uses a mechanical latch to hold the contacts in place without continuous coil stimulation. Change the state, it requires a short pulse or specific electrical input.
Latching relays are ideal for applications that prioritize energy efficiency, power conservation, or memory of the last state. They are commonly used in control systems, tell communications, and energy management to reduce power consumption and maintain desired settings.
M
Mechanical Life
Mechanical life refers to the expected lifespan or number of mechanical operations of a switch or relay. It can endure before its mechanical components start to degrade or fail. Mechanical life refers to the durability and reliability of the moving parts in a switch or relay.
The mechanical life is influenced by factors like the design, quality of materials, operating conditions, and application-specific requirements. Manufacturers typically provide a specified number of operations or cycles for the mechanical life of a switch or relay. which is an important consideration when selecting a device for a particular application.
N
Non-Latching Relay
A non-latching relay, or monostable relay, switches temporarily with coil stimulation. Reverts to its default state when the coil is de-energized, restoring the contacts to their original position.
Non-latching relays are commonly used in applications where momentary switching or control is required. And maintaining the switched state is not necessary. They are widely used in various industries, including automation, automotive, and tele communications.
Normally Closed (NC)
Normally Closed (NC) refers to the state of contacts in a switch or relay when it is in its resting. In an NC configuration, the contacts are physically connected in the resting state, providing a continuous electrical pathway or circuit.
This means that current can flow through the contacts when the switch or relay is not activated. When the switch is actuated or the relay coil is energized, the contacts open, interrupting the electrical circuit.
Normally Open (NO)
Normally Open (NO) refers to the state of contacts in a switch or relay when it is in its resting. The contacts are physically open in the resting state, meaning there is no electrical connection or pathway between the contacts.
This prevents current from flowing through the contacts. when the switch or relay is not activated or the coil is not energized. When the switch is actuated or the relay coil is energized, the contacts close, establishing an electrical circuit.
O
Operate Time
Operate time is the duration from the resting state to the fully actuated state of a switch or relay. To perform a specified action once the activation signal is applied. It is the duration required for the switch or relay to respond and complete the desired operation.
The operating time is an important parameter in applications where timing precision is critical. Such as in control systems, automation, or high-speed operations. Manufacturers typically provide specifications for the operating time of switches or relays to ensure proper coordination with other components.
Overload Relay
An overload relay is a protective device used to detect excessive current in an electrical circuit. It is commonly used to protect motors and other electrical equipment from damage due to over-current conditions. The overload relay monitors the current flowing through the circuit. If it exceeds a preset threshold, it triggers a response to protect the equipment.
This can include opening the circuit, tripping a circuit breaker, or sending a signal for an alarm or shutdown. Overload relays help prevent overheating and damage caused by excessive current, thereby ensuring the safe and reliable operation of electrical equipment.
P
Pickup Voltage
Pickup voltage refers to the minimum voltage level required to energize the coil of a protective relay or device. It is the voltage threshold at which the relay or device detects a fault or abnormal condition. It activates its protective function.
When the voltage exceeds the pickup voltage, the relay or device responds by Opening a protective action. Such as tripping a circuit breaker, closing contacts, or sending an alarm signal. The pickup voltage is set to a specific value based on the system requirements. And the desired sensitivity of the protective relay.
Pole
In the context of switches or relays, a pole refers to a set of contacts that open or close simultaneously. A switch or relay can have multiple poles, and each pole may have one or more sets of contacts.
For example, a single-pole single-throw switch has one pole and one set of contacts. While a double pole double throw switch has two poles and two sets of contacts. Poles allow for simultaneous control of multiple circuits or functions with a single switch or relay.
Protective Relay
Protective relays monitor power systems and trigger protective actions when abnormal conditions are detected, safeguarding against faults.
It detects abnormal conditions such as over-current, under-voltage, over-voltage, or other fault conditions. The signals or activates protective measures to mitigate potential damage or hazards.
Protective relays play a crucial role in maintaining the safety and reliability of power systems and detecting faults. And preventing equipment damage by beginning appropriate protective measures. They play a crucial role in safeguarding equipment, personnel, and the integrity of the electrical system.
R
Reed Relay
A reed relay uses a sealed glass tube with reed switches as its switching element. Reed switches consist of two ferro magnetic reeds sealed within a glass envelope.
When a magnetic field is applied, the reeds come into contact, completing the electrical circuit. Reed relays are known for their fast switching speed, low contact resistance, and high reliability. They are commonly used in applications requiring precise and sensitive switching, such as tele-communications, test equipment, and measurement devices.
Relay
A relay is an electrical device that uses an electromagnet to control the switching of one or more sets of contacts. It is used to open or close circuits in response to a control signal or specific conditions. When the coil of the relay is energized, it creates a magnetic field that attracts or repels. The relay’s armature, causes the contacts to change their position.
Relays are widely used in various industries and applications, including industrial automation, power distribution, automotive electronics, and tele communications.
Relay Mounting Type
Relay mounting type refers to the method or mechanism used to physically mount or secure a relay in a specific location. There are various mounting types available, including socket mount, panel mount, DIN rail mount, PCB mount, and surface mount.
The choice of mounting type depends on factors such as the application requirements, available space, and ease of installation. And the specific environment in which the relay will be installed. Proper mounting ensures secure attachment, electrical connections, and reliable operation of the relay.
Relay Size
Relay size refers to the physical dimensions and form factor of a relay. It encompasses the overall dimensions, including length, width, and height, as well as any specific mounting or terminal configurations.
Relay size can vary significantly depending on the type, voltage and current ratings, and specific application requirements. Choosing the appropriate relay size is crucial to ensure proper fitment and compatibility within the intended system or equipment.
Relay State
Relay state refers to the condition or position of the relay’s contacts. The relay can be in either the normally open (NO) state, where the contacts are open in the resting position. the normally closed (NC) state, where the contacts are closed in the resting position.
The relay state changes when the coil is energized or de-energized, causing the contacts to switch to the opposite state.
Relay Switching Current
Relay switching current refers to the maximum current capacity of a relay’s contacts when transferring an electrical load between circuits. It represents the ability of the relay to handle the intended load without experiencing issues like overheating or contact damage.
Selecting a relay with a suitable switching current rating is crucial for ensuring safe and reliable operation. Choosing a relay with a rating that matches or exceeds the application’s requirements helps prevent premature failure and ensures longevity. Proper consideration of the switching current rating is necessary to maintain optimal performance and avoid potential hazards in electrical systems.
Relay Switching Voltage
Relay switching voltage refers to the maximum voltage that a relay can safely switch or handle. It represents the voltage level at which the relay’s contacts can open or close without excessive arcing or breakdown.
The switching voltage rating is an important consideration when selecting a relay for a specific application.
As it ensures that the relay can safely control the intended voltage level without damaging the contacts.
Release Time
It is also known as dropout time. Refers to the time it takes for a relay to return to its resting state after the coil is de-energized. It is the duration required for the relay’s contacts to fully open or close after the coil power is removed.
The release time is influenced by the mechanical components and the design of the relay. It is an important parameter to consider, especially in applications where precise timing is crucial. As it affects the overall response and operational speed of the relay.
S
Sensitivity
Sensitivity refers to the level of input or signal required to activate or trigger a response in a device or system. In the context of relays or sensors, sensitivity refers to the minimum input level, such as voltage or current. Needed to cause a change in the relay’s state or to detect a specific condition.
Higher sensitivity means that the relay or sensor can detect or respond to lower input levels. While lower sensitivity requires a higher input level to initiate a response. Sensitivity is an important characteristic in applications where detecting small signals or low-level inputs is critical. such as in precision measurement, control systems, or sensing applications.
Shock Resistance
Shock resistance is the capability of a relay or device to endure mechanical shocks and impacts while maintaining reliable operation. It measures the ability to absorb or dissipate the forces generated by sudden impacts without damage or functional impairment.
High shock resistance is essential in rugged environments where the relay may encounter vibrations or shocks. Relays with superior shock resistance withstand external forces, ensuring longevity and performance in demanding applications.
Single Pole Double Throw (SPDT)
SPDT is a switch or relay configuration with one input terminal, one common terminal, and two output terminals. It enables the selection of a single input signal to be directed to one of two output paths.
Upon actuation, the common terminal connects to one output terminal, while the other remains disconnected. SPDT switches are utilized in applications requiring the routing of a single input to one of two different outputs.
Single Pole Single Throw (SPST)
SPST refers to a type of switch or relay configuration that has one input terminal and one output terminal. It is the simplest form of switch, where the input is either connected or disconnected from the output.
When actuated, the switch or relay connects the input terminal to the output terminal for current flow. When the switch is in the resting state, the input and output terminals remain disconnected. SPST switches are widely used in various applications where a simple on/off control is required.
Solid State Relay (SSR)
A solid-state relay is an electronic switching device that uses solid-state components. Such as semi conductor devices like thyristors or MOSFETs, to perform the switching operation. Unlike traditional electro-mechanical relays, SSRs do not have moving parts or mechanical contacts. Instead, they use electronic components to control the flow of current.
SSRs offer advantages such as faster switching speed, longer lifespan, silent operation, and high resistance to shock and vibration. They are commonly used in applications where precise and reliable switching is required. Such as in industrial automation, robotics, and power control systems.
T
Time Delay Relay
A time delay relay is a relay that introduces a delay between receiving an actuation signal and switching the contacts. It is commonly used in applications that require time-based control or sequencing. These relays are utilized for functions such as motor starting, timed switching, time delay off, or time delay on.
Allowing users to set the desired delay time, or fixed, with a predetermined delay time set by the manufacturer. Time delay relays provide flexibility and precision in controlling actions or changing states based on specific time intervals. Enhancing the efficiency and functionality of various systems.
V
Vibration Resistance
Vibration resistance refers to a device’s ability to withstand mechanical vibrations without experiencing damage or degradation in performance. It is crucial in applications where the device may be subjected to continuous or high-frequency vibrations.
Components with high vibration resistance are designed to absorb or dissipate the forces generated by vibrations, ensuring reliable operation and longevity. They are commonly used in industries such as automotive, aerospace, and industrial machinery.
To withstand vibrations in challenging environments, devices utilize strong mechanical structures and vibration-damping materials. And secure mounting mechanisms, enhancing their resistance to vibrations and enabling reliable operation in such conditions.
Conclusion
In conclusion, understanding relay terminologies is vital for anyone working with electrical circuits and systems. This comprehensive guide has provided an overview of key relay terminologies, ranging from contact types and coil voltage to time delay and latching relays. By familiarizing yourself with these terms, you can make informed decisions when selecting relays, interpreting specifications, and troubleshooting relay-related issues.
Relays serve as essential components in various applications, enabling control and switching of electrical circuits. Having a solid grasp of relay terminologies empowers you to effectively communicate and collaborate with colleagues, suppliers, and manufacturers in the field.
With the knowledge gained from this guide, you can confidently navigate the world of relays, understand datasheets, and select the appropriate relay for your specific needs. Whether you’re an electronics hobbyist, a technician, or an engineer, mastering relay terminologies will enhance your proficiency and enable you to design, troubleshoot, and maintain reliable and efficient electrical systems.
