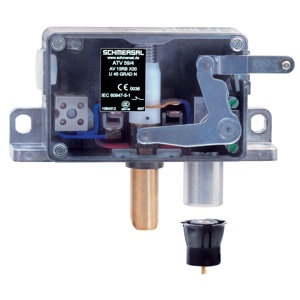

AV15LBKX20U-GB215: 103031356 - Schmersal Door Switch With Ip Rating
Technical Specifications of Schmersal Door Switch With Ip Rating AV15LBKX20U-GB215 103031356:
| Spec | Value |
|---|---|
| Number of auxiliary contacts | 1 |
| Mounting | rear-side mounting holes |
| Switching element | NC contact, NO contact |
| Switching principle | Slow action |
Schmersal Door Switch With Ip Rating AV15LBKX20U-GB215, 103031356 Technical Specifications:
| Specification | Value |
|---|---|
| Housing material | Light alloy die-casting |
| Material of the latching bolt | Brass |
| Number of auxiliary contacts | 1 |
| Number of door leafs | 1 |
| Number of safety contacts | 1 |
| Actuating element | Roller lever H65 and bearing block B |
| Orientation / Alignment | left-hand model |
| Mounting | rear-side mounting holes |
| Cable entry | without cable gland |
| Width | 165 mm |
| Height | 80 mm |
| Depth | 36 mm |
| Diameter of the latching bolt | 18 mm |
| X-dimension of the latching bolt | 20 mm |
| Latching bolt bevelling, bottom | 45 ° |
| Degree of protection | IP20 |
| Ambient temperature | -15 ... +70 °C |
| Rated insulation voltage Ui | 400 VAC |
| Rated impulse withstand voltage Uimp | 6 kV |
| Thermal test current | 10 A |
| Switching element | NC contact, NO contact |
| Switching principle | Slow action |
| Gross weight | 1,000 g |
Call us for Schmersal Door Switch With Ip Rating AV15LBKX20U-GB215 part no: 103031356 at the best rates. Technical Attributes of AV15LBKX20U-GB215, 103031356 are Light alloy die-casting with a latching bolt crafted from high-quality Brass ensuring long-lasting durability. It includes 1 auxiliary contact and utilizes an Roller lever H65 and bearing block B as the actuating element, tailored for left-hand model orientation. The sensor is mounted using rear-side mounting holes providing easy and secure installation. With a IP20 degree of protection, it is suitable for environments with minimal dust and moisture exposure. The sensor operates efficiently in ambient temperatures ranging from -15 ... +70 °C making it versatile for various conditions. It has a rated insulation voltage of 400 VAC and a rated impulse withstand voltage of 6 kV offering strong electrical protection. Equipped with an Slow action switching element and both NC contact, NO contact. Unlock Exclusive Pricing with a Quote for your requirement of Schmersal Door Switch With Ip Rating. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
