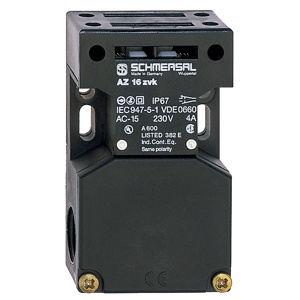

AZ 16-03ZVRK-1637: 101139313 - Schmersal Safety Switch with Rapid Actuation
Technical Specifications of Schmersal Safety Switch with Rapid Actuation AZ 16-03ZVRK-1637 101139313:
| Spec | Value |
|---|---|
| Working Principle | Electromechanical |
| Mounting | Screws |
| Type of the Fixing Screws | 2x M6 |
| Termination | Screw terminals |
Schmersal Safety Switch with Rapid Actuation, AZ 16-03ZVRK-1637, 101139313 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Housing coating material | - |
| Number of safety contacts | 3 |
| Number of cable glands | 3 |
| B10D Normally-closed contact (NC) | 2,000,000 Operations |
| B10D Normally-open contact (NO) | - |
| Latching force | - |
| Positive break travel | 8 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | - |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 2x M6 |
| Tightening torque of the fixing screws | - |
| Tightening torque of the fastening screws for the housing cover | - |
| Termination | Screw terminals |
| Cable entry | |
| Cable section, minimum | |
| Cable section, maximum | |
| Tightening torque of electrical connection, minimum | |
| Tightening torque of electrical connection, maximum | |
| Allowed type of cable | |
| Length of sensor | 30 mm |
| Width of sensor | 52 mm |
| Height of sensor | 90 mm |
| Degree of protection | IP67 |
| Ambient temperature | -30 ... +80 °C |
| Storage and transport temperature | -40 ... +85 °C |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | - |
| Thermal test current | 10 A |
| Required rated short-circuit current | 1,000 A |
| Switching element | 3 NC contact |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 4,000 /h |
| Material of the contacts, electrical | Gold-plated silver (AgNi 15 + Au 0,3µm) |
| Gross weight | 120 g |
Call us for Schmersal Safety Switch with Rapid Actuation AZ 16-03ZVRK-1637 part no: 101139313 at the best rates. Technical Attributes of AZ 16-03ZVRK-1637, 101139313 are Electromechanical working principle. The switch features a robust housing made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing ensuring durability in industrial environments. It comes with 3 safety contacts, with a B10D rating of 2,000,000 Operations for normally-closed (NC) contacts and - for normally-open (NO) contacts. The switch provides a latching force of - and is mounted using Screws with secure Screw terminals for termination. It operates at a rated insulation voltage of 500 V and includes 3 NC contact switching elements, with a maximum switching frequency of 4,000 /h. The switch is protected with IP67 ratings, making it suitable for harsh conditions, and can operate in ambient temperatures ranging from -30 ... +80 °C. Pricing with a Quote for your requirement of Schmersal Safety Switch with Rapid Actuation. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
