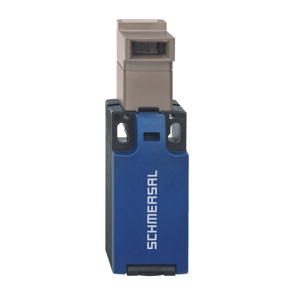

AZ216-T12R: 103049877 - Schmersal 1 Cable Glands Safety Switch
Technical Specifications of Schmersal 1 Cable Glands Safety Switch AZ216-T12R 103049877:
| Spec | Value |
|---|---|
| Working Principle | Electromechanical |
| Mounting | Screws |
| Type of the Fixing Screws | 2x M4 |
| Termination | Screw terminals |
Schmersal 1 Cable Glands Safety Switch, AZ216-T12R, 103049877 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Electromechanical |
| Housing material | Metal, zinc die-cast |
| Housing coating material | painted |
| Number of safety contacts | 2 |
| Number of cable glands | 1 |
| B10D Normally-closed contact (NC) | 2,000,000 Operations |
| B10D Normally-open contact (NO) | 1,000,000 Operations |
| Latching force | 30 N |
| Positive break travel | 5 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | 20 N |
| Actuating speed, maximum | 0.2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 2x M4 |
| Tightening torque of the fixing screws | 2 Nm |
| Tightening torque of the fastening screws for the housing cover | 2.6 Nm |
| Termination | Screw terminals |
| Cable entry | 1 x M20 x 1,5 |
| Cable section, minimum | 0.34 mm² |
| Cable section, maximum | 1.5 mm² |
| Tightening torque of electrical connection, minimum | 0.6 Nm |
| Tightening torque of electrical connection, maximum | 0.8 Nm |
| Allowed type of cable | solid single-wire solid multi-wire flexible |
| Length of sensor | 37 mm |
| Width of sensor | 40 mm |
| Height of sensor | 113.8 mm |
| Degree of protection | IP66, IP67 |
| Ambient temperature | -30 ... +80 °C |
| Storage and transport temperature | -40 ... +85 °C |
| Rated insulation voltage Ui | 300 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 5 A |
| Required rated short-circuit current | 400 A |
| Switching element | 1 NO contact, 2 NC contacts |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,200 /h |
| Material of the contacts, electrical | Silver |
| Gross weight | 408 g |
Please speak to our Technical Engineer for Schmersal 1 Cable Glands Safety Switch AZ216-T12R part no: 103049877 at attractive prices. Technical Specs Summary of AZ216-T12R, 103049877 includes Electromechanical working principle. The switch features a robust housing made of Metal, zinc die-cast ensuring durability in industrial environments. It comes with 2 safety contacts, with a B10D rating of 2,000,000 Operations for normally-closed (NC) contacts and 1,000,000 Operations for normally-open (NO) contacts. The switch provides a latching force of 30 N and is mounted using Screws with secure Screw terminals for termination. It operates at a rated insulation voltage of 300 VAC and includes 1 NO contact, 2 NC contacts switching elements, with a maximum switching frequency of 1,200 /h. The switch is protected with IP66, IP67 ratings, making it suitable for harsh conditions, and can operate in ambient temperatures ranging from -30 ... +80 °C. Match Your Needs with a Quote for your requirement of Schmersal 1 Cable Glands Safety Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
